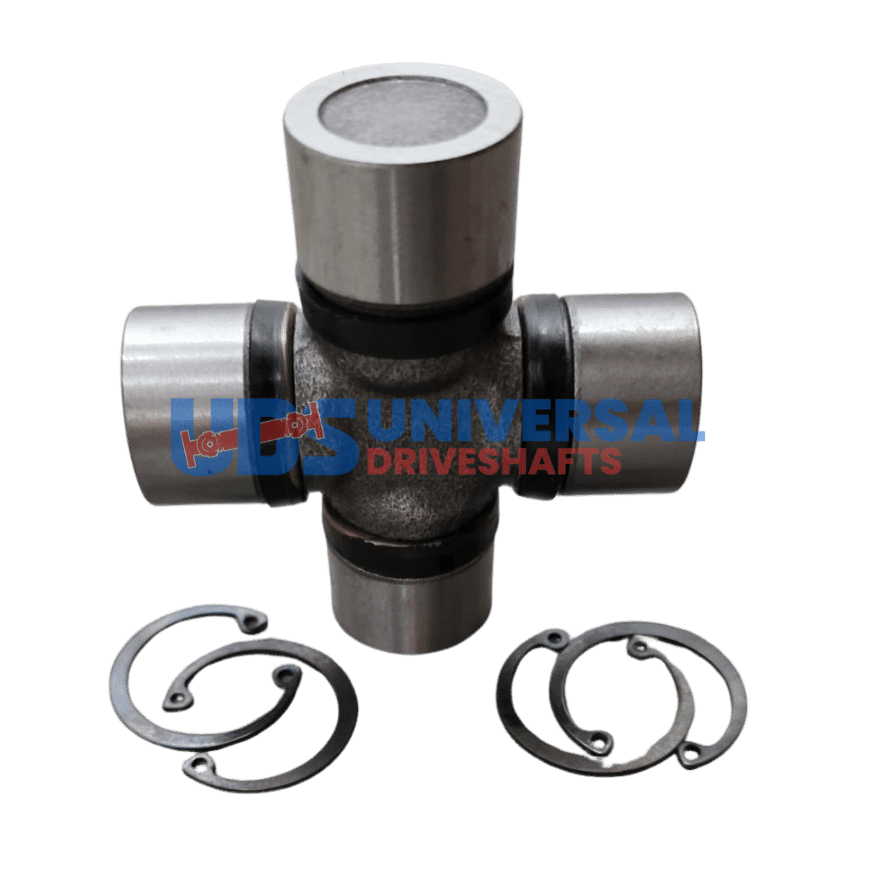

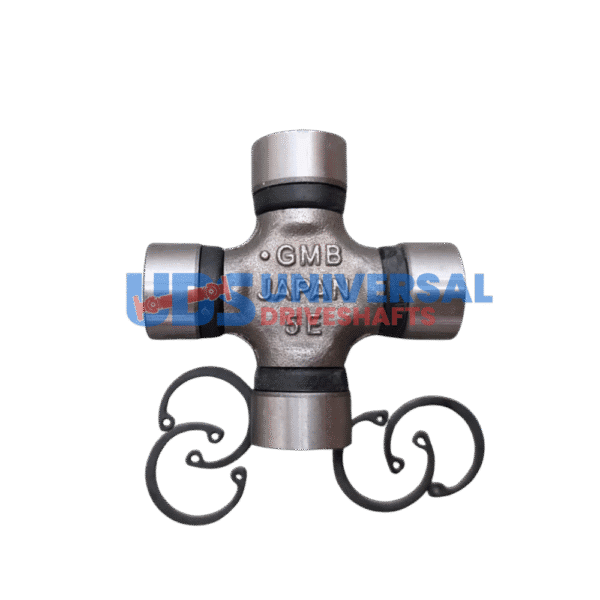

GU7410 Universal Joint P287.00 26×70 OSR 1.025×2.748 GWB Non Greaseable Sealed Heavy Duty
$12.36
46 in stock
18
People watching this product now!
Description
UDS 287.00 u-joint. 1.025″ cap, 2.748″ width. Outside Snap Ring retention. Sealed.
Full Description
Before you start looking at carrier bearings, check the u-joints first. The GU7410 Universal Joint P287.00 26x70 OSR 1.025x2.748 GWB Non Greaseable Sealed Heavy Duty is dimensioned specifically for this application — no modification, no shimming.
The 287.00 series runs a varies cap diameter across a varies width — built for multi-application use. It's the standard cross on fits multiple series/platforms — verify dimensions.
Outside Snap Ring retention (OSR): Clips retain cap from outside the yoke bore. Most common retention method on domestic trucks. No special tools needed — standard snap ring pliers work.
Factory-sealed with high-temp grease. No zerk, no service interval. For most daily-driven vehicles, sealed joints outlast greasable ones that never get serviced.. Dimensions: 1.025" cap, 2.748" width. GWB - NON GREASEABLE. Confirm fitment by measuring your existing joint — series designation alone isn't always enough on modified or swapped vehicles.
Key Features
- Cap diameter: 1.025" cap diameter — must match yoke bore exactly for correct seating
- Width: 2.748" overall width — verify against yoke ear spacing
- Outside Snap Ring (OSR) retention — Standard U-joint press and snap ring pliers.
- Sealed — sealed and pre-lubricated — no grease fitting, no maintenance
- Series: 287.00 — multi-application
- UDS brand — direct-fit replacement dimensioned to OEM spec
- Note: GWB - NON GREASEABLE
Specifications
- SKU: GU7410
- Brand: UDS
- Series: 287.00
- Cap Diameter: 1.025"
- Width: 2.748"
- Style: Outside Snap Ring (OSR)
- Greasable: Sealed
- Notes: GWB - NON GREASEABLE
Additional information
| Series |
287.00 |
|---|---|
| Style |
OSR |
| Cap dia 1 |
1.025 |
| Width 1 |
2.748 |
| Lube |
No |
| Brand |
UDS |
| Notes |
GWB – NON GREASEABLE |
