GN-132 Flex Disc Mercedes Benz Coupler 300er, 350er, 380er, 420er, 450er, 500er, 560er, E 300
$110.52
2 in stock
14
People watching this product now!
Description

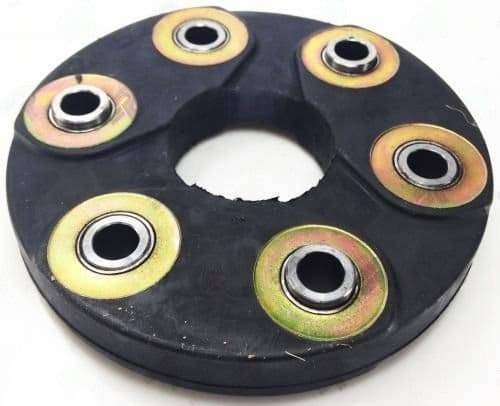

Rubber flex disc GN-132, MERCEDES. 110MM bolt circle | 6 bolt holes | 12MM hole dia | 26MM disc width. 300ER, 350ER, 380ER, 420ER, 450ER, 500ER, 560ER, E 300.
Full Description
Flex disc replacement is straightforward on most European platforms -- remove six bolts, swap the disc, torque back up. The GN-132 is the correct MERCEDES replacement.
GN-132 Rubber Flex Disc -- MERCEDES Bolt Pattern & Dimensions
Specs on the GN-132 rubber flex disc: 110MM bolt circle | 6 bolt holes | 12MM hole dia | 26MM disc width. 300ER, 350ER, 380ER, 420ER, 450ER, 500ER, 560ER, E 300. Built for MERCEDES applications.
Disc width determines how much the coupling can flex angularly. Too thin and it overworks; too thick and it restricts movement. The GN-132 is dimensioned for this specific application.
Key Features
- Application: MERCEDES -- verify vehicle fitment
- Bolt circle: 110MM -- must match both flanges exactly
- Bolt holes: 6 -- hole count must match flange pattern
- Bolt hole dia: 12MM -- verify bolt size compatibility
- Disc width: 26MM -- determines angular flex range
- Rubber construction -- absorbs vibration and angular movement, no metal-to-metal contact
- Direct swap for worn or cracked original disc -- no modification required
- Note: 300ER, 350ER, 380ER, 420ER, 450ER, 500ER, 560ER, E 300
Specifications
- SKU: GN-132
- Brand: UDS
- Application: MERCEDES
- Bolt Circle: 110MM
- Bolt Holes: 6
- Bolt Hole Dia: 12MM
- Disc Width: 26MM
- Notes: 300ER, 350ER, 380ER, 420ER, 450ER, 500ER, 560ER, E 300
Additional information
| Application |
MERCEDES |
|---|---|
| Bolt circle dia |
110MM |
| Bolt hole count |
6 |
| Bolt hole dia |
12MM |
| Disc width |
26MM |
| Notes |
300ER, 350ER, 380ER, 420ER, 450ER, 500ER, 560ER, E 300 |
| Partn number |
GN-132 |
| Pilot dia |
18MM |
