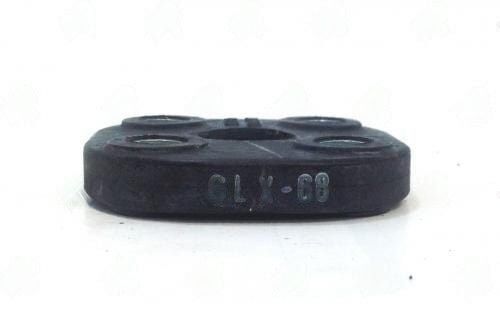

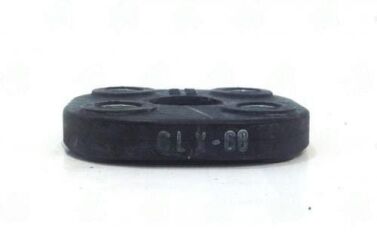

GLX-68 – Rubber Flex Disc – Bmw Application – Bolt Circle Dia 50MM – Bolt Hole Dia 8.32MM

The GLX-68 is a rubber flex disc for BMW applications. It mounts between the driveshaft and the flanged output shaft -- bolt circle and hole count have to match exactly.

GLX-68 Flex Disc Specifications

The GLX-68 rubber flex disc: 50MM bolt circle | 4 bolt holes | 8.32MM hole dia | 13MM disc width. 3ER, 5ER, 6ER, 7ER, ERr, M5, M535, M635, Z1.

Application: BMW. Flex discs absorb both rotational and angular movement. Hardened or cracked rubber passes vibration through instead -- if you can see cracking or the disc feels stiff, it's time for replacement.

Key Features

• Application: BMW -- verify vehicle fitment
• Bolt circle: 50MM -- must match both flanges exactly
• Bolt holes: 4 -- hole count must match flange pattern
• Bolt hole dia: 8.32MM -- verify bolt size compatibility
• Disc width: 13MM -- determines angular flex range
• Rubber construction -- absorbs vibration and angular movement, no metal-to-metal contact
• Direct swap for worn or cracked original disc -- no modification required
• Note: 3ER, 5ER, 6ER, 7ER, ERr, M5, M535, M635, Z1

Specifications

• SKU: GLX-68
• Brand: UDS
• Application: BMW
• Bolt Circle: 50MM
• Bolt Holes: 4
• Bolt Hole Dia: 8.32MM
• Disc Width: 13MM
• Notes: 3ER, 5ER, 6ER, 7ER, ERr, M5, M535, M635, Z1
