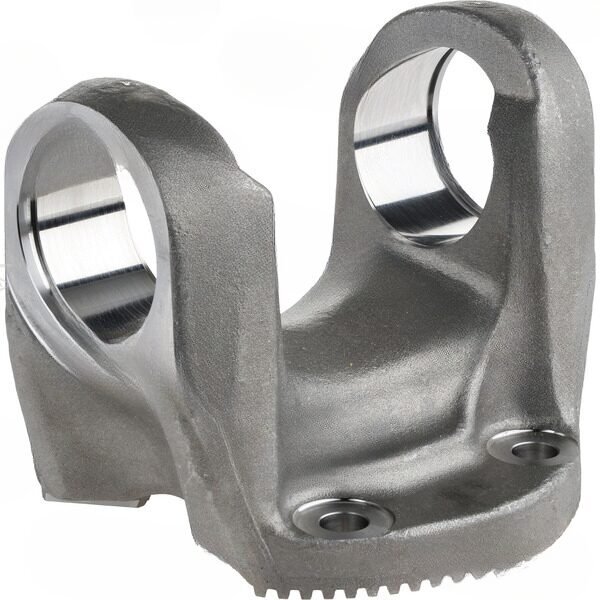

SPL350 (Flange Yokes) connects the driveshaft to the transmission, transfer case, or differential through a splined or bolted interface. Specifications include Bolt circle dia 155.50, Bolt hole dia 16, Pilot dia XS 180, Series 687.65, Bolt Holes 4.
687 Series determines the mating U-joint cap diameter and cross width. Designed for FLANGE YOKE SPL350 / 68765 65X172 applications. Key dimensions: Bolt circle dia 155.50, Bolt hole dia 16, Pilot dia XS 180.
Check the yoke ears for scoring or cap bore wear — damaged ears will shorten U-joint life.
