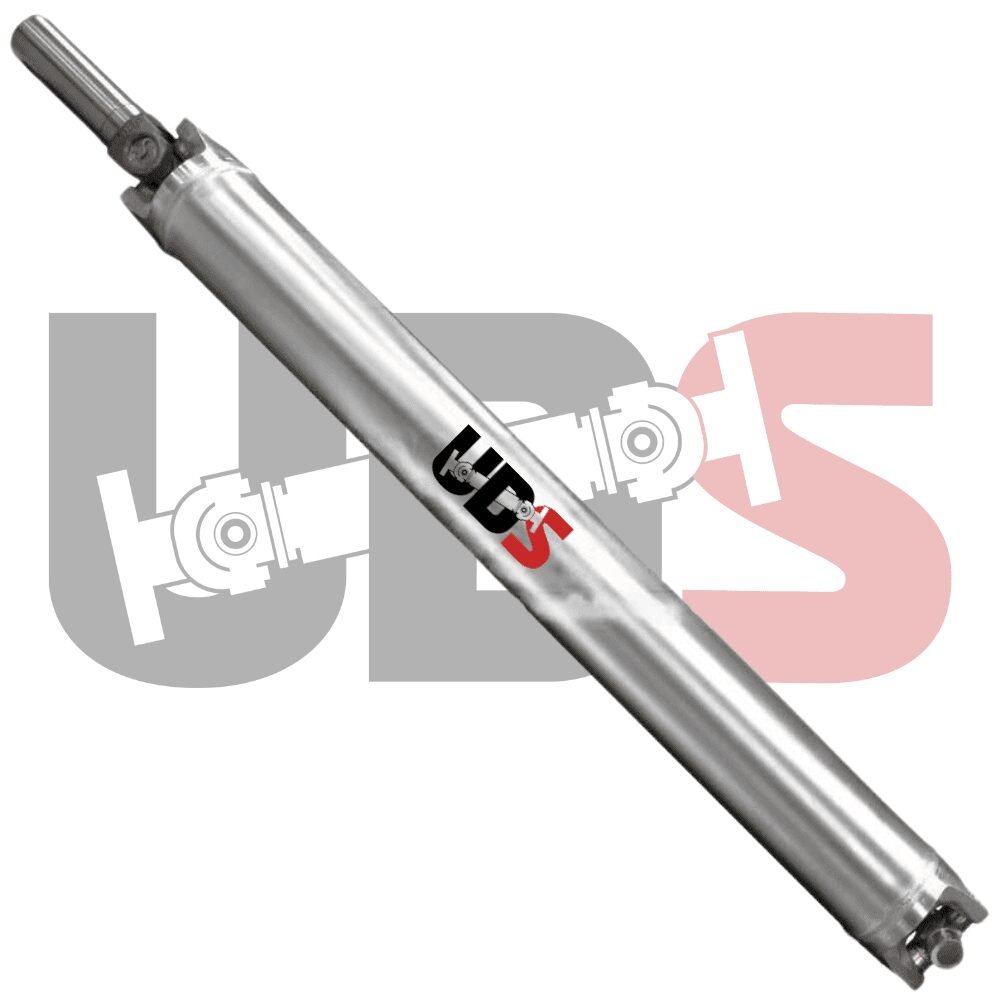

Duramax One Piece 5″ OD Aluminum Driveshaft – RCLB

SKU: 5A1480-M-RCLB(01-16)

$1,099.41

Notes (Optional)
Write here any note related to your driveshaft requirements
This drive shaft includes the slip yoke and is balanced and ready to install.
Modified Vehicles:
This driveshaft is designed to fit stock vehicle applications, double check your driveshaft length if your truck is lifted, leveled or modified. We maybe able to make you a custom driveshaft to match your unique vehicle specifications - contact us today with your driveshaft length (measuring guide). The maximum length driveshaft that UDS can build is 89 inches seal to center of u-joint.

*Order Options:

A Measurement (inches)
Write your driveshaft length here. (Optional)

B Measurement (inches)
Write your driveshaft length here. (Optional)

10 People watching this product now!

Description

Weld Yoke Material:	Aluminum 6061-T6 Forged Yoke
Tube Material:	0.125 WALL 6061-T6 Seamless
Tube Outside Diameter:	5 Inch OD
U-Joint:	Spicer/Dana 1480 Series U-Joint Size: 1 3/8″ Cap x 4 3/16″ Span Premium Non-Greasable
Driveshaft Length:	59 Inches Over All – From End of Slip-yoke to Center of U-Joint 50 5/8 Inches CL to CL – Center Line of Front U-Joint to Center Line of Rear U-Joint

Additional information

Vehicle	Chevy/GMC
Tube diameter	5" OD
d-year	2001 – 2016
Length	Regular Cab & Long Bed
Model	2500/3500 4WD
Transmission	4WD
Series	1480
Material	ALUMINUM
