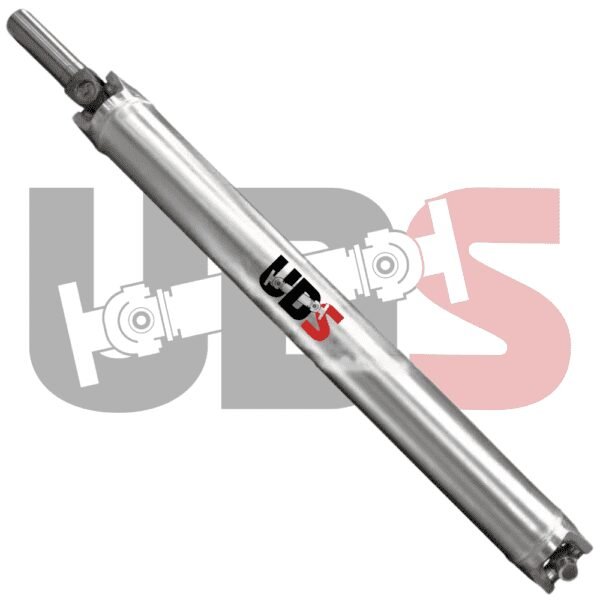

Duramax One Piece 5″ OD Aluminum Driveshaft – CCSB – Series 1410

SKU: 5A1410-M-CCSB(01-07)

$1,048.32

Notes (Optional)
Write here any note related to your driveshaft requirements
This drive shaft includes the slip yoke and is balanced and ready to install.
Modified Vehicles:
This driveshaft is designed to fit stock vehicle applications, double check your driveshaft length if your truck is lifted, leveled or modified. We maybe able to make you a custom driveshaft to match your unique vehicle specifications - contact us today with your driveshaft length (measuring guide). The maximum length driveshaft that UDS can build is 89 inches seal to center of u-joint.

*Order Options:

A Measurement (inches)
Write your driveshaft length here. (Optional)

B Measurement (inches)
Write your driveshaft length here. (Optional)

19 People watching this product now!

Description

Weld Yoke Material:	Aluminum 6061-T6 Forged Yoke
Tube Material:	0.125 Inch Wall 6061-T6 Seamless
Tube Outside Diameter:	5.0 Inch OD
U-Joint:	Spicer/Dana 5-1410XU 1410 Series U-Joint Size: 1 3/16 Inch Cap x 4 3/16 Inch Span Premium Non-Greasable
Driveshaft Length:	74 inches Seal to Center of U-Joint See note below for modified vehicles.
Note for 2007 Trucks:	2007 is a split year with two truck designs. This driveshaft fits 2007 model year trucks with the classic design (creased door skin).

Additional information

Vehicle	Chevy/GMC
Tube diameter	5" OD
d-year	2001 – 2007
Length	Crew Cab & Short Bed
Transmission	4WD
Series	1410
Model	2500/3500
Material	ALUMINUM
