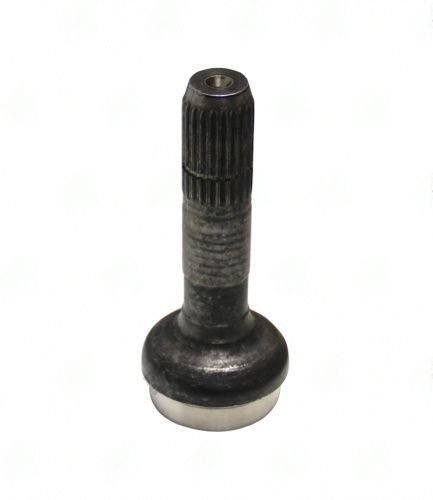

9940-23 – Stub & Midship Shaft – 22 X 0.950 Splines – Butt Dia 1.844″ – Tube Dia 2.000
$39.97
13 People watching this product now!
Description
The 9940-23 Stub & Midship Shaft features 22 X 0.950 splines and a 1.844″ butt diameter for reliable torque transmission.
Full Description
The 9940-23 Stub & Midship Shaft is a critical component designed for efficient torque transmission in driveline systems. With 22 X 0.950 splines, this shaft ensures a secure fit with compatible U-joints, providing the necessary strength and reliability for demanding applications. The butt diameter of 1.844" and tube diameter of 2.000" contribute to its robust construction, allowing it to handle high torque loads effectively.
One of the key features of the 9940-23 is its 1.500" spline length, which is specifically engineered to match the requirements of various driveline setups. If you mistakenly use a shaft with a different spline length or diameter, you risk improper fitment, leading to potential failure or excessive wear. The tube wall thickness of 0.083" adds to its durability, ensuring it can withstand the rigors of everyday use.
- Verify the spline count and dimensions to ensure compatibility.
- Check the tube wall thickness for strength and durability.
- Ensure proper alignment during installation to prevent vibration.
- Torque bolts to specification to maintain integrity.
In summary, the 9940-23 Stub & Midship Shaft is engineered for precision and performance. Its unique specifications make it essential for maintaining the integrity of your vehicle's driveline system.
Additional information
| Butt dia | 1.844 |
|---|---|
| End to weld | 4.437 |
| Partn number | 9940-23 |
| Splines count dia | 22 X 0.950 |
| Splines length | 1.500 |
| Tube dia | 2.000 |
| Tube wall | 0.083" |
| Style | CVJ |
