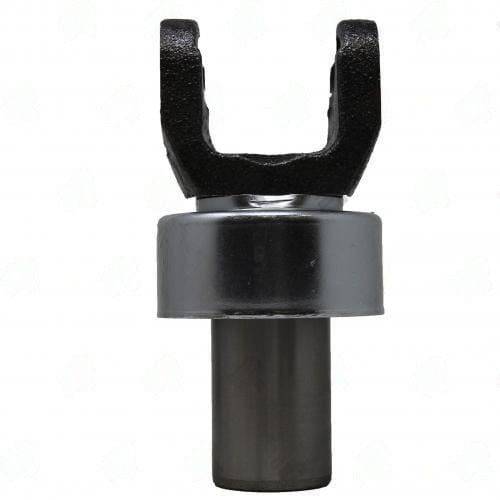

9903-14 – Transmission Yokes – 1751 Series – 14/16 X 1.060 Splines – 1.570″ Hub Dia

The 9903-14 Transmission Yoke is specifically engineered for Suzuki and Geo vehicles, ensuring optimal performance and reliability. This yoke features a 1751 Series configuration, which is crucial for applications that require a balance between strength and weight. The spline count of 14/16 X 1.060 inches provides a robust connection to the driveshaft, while the 1.570-inch hub diameter ensures a snug fit with the mating components.

One of the key design considerations for the 9903-14 is its center U-joint to end measurement of 5.250 inches. This dimension is critical for maintaining proper alignment and phasing with the opposite yoke, which helps to reduce vibrations and wear in the driveline. The slip yoke design allows for axial movement during suspension travel, accommodating the dynamic changes that occur while driving.

When installing the 9903-14, keep these points in mind:

• Check spline engagement depth to ensure a secure fit.
• Verify phasing with the opposite yoke to prevent driveline vibrations.
• Never force spline entry; ensure proper alignment before installation.

In summary, the 9903-14 is a vital component for maintaining the driveline integrity of Suzuki and Geo vehicles, designed to handle the specific demands of these applications.
