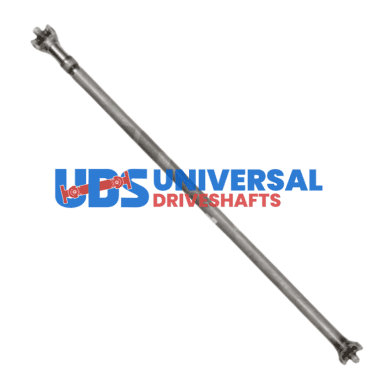

9533-4724 Unwelded 1310 series

When you’re working on a custom driveline project, the 9533-4724 driveshaft is a critical component. This unwelded assembly in the 1310 Series allows for precise sizing and welding, making it perfect for DIY applications. With a minimum to maximum length of approximately 55 7/16″ to 57 9/16″ center-to-center of joint caps, it fits a variety of setups.

One of the key features of the 9533-4724 is its solid sealed U-joint design, which ensures durability and reliability under torque loads. If you’re experiencing vibrations or noise during operation, it may be a sign that your current driveshaft is worn or misaligned. Replacing it with this specific assembly can restore smooth operation and eliminate those symptoms.

• Approximate tubing length: 47.562″ (weld to weld)
• Slip yoke length: 5.375″ (center of joint to end of spline)
• Spline dimensions: 1.375″ diameter with 16 splines
• Approximate tubing diameter: 2.000″ for optimal strength
• Designed for 1310 Series universal joints with a 1.062″ cap

Always ensure proper installation by verifying phasing marks and checking for runout. The 9533-4724 driveshaft is engineered to handle the torque path and load stability required in performance applications, making it a reliable choice for your next build.
