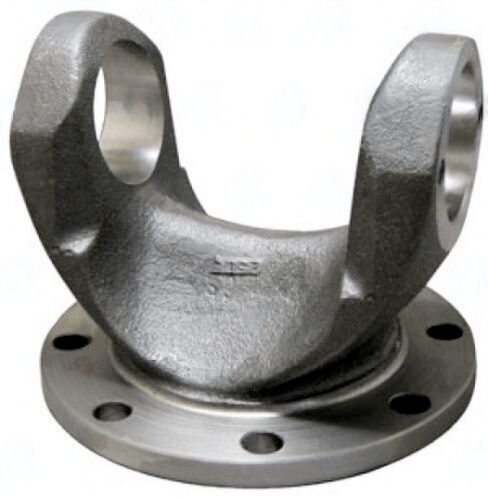

6102-1582 – Flange Yokes – 1610 Series – Bolt Circle Dia 5.120″ – Cj To Flat 3.420

The 6102-1582 Flange Yoke is a critical component for ensuring effective torque transfer between your driveshaft and the powertrain or axle assembly. This yoke is specifically designed for 1610 Series applications, making it essential for maintaining the integrity of your driveline setup. With a bolt circle diameter of 5.120″ and a cj to flat measurement of 3.420″, this yoke provides a robust connection that can handle the demands of high-performance and heavy-duty applications.

One of the standout features of the 6102-1582 is its compatibility with the 1610 Series U-joints, which dictate the cap diameter and cross width. This means that using the correct yoke is vital; a mismatch can lead to improper fitment and potential failure. For instance, a 1350 Series yoke may look similar but will not accommodate the same U-joint due to differences in cap diameter.

• Series: 1610
• Bolt Circle Diameter: 5.120″
• Bolt Hole Diameter: 0.472″
• Cj to Flat: 3.420″
• Bolt Holes: 8

When installing the 6102-1582, ensure that you check the spline engagement depth and verify phasing with the opposite yoke. Never force the spline entry, as this can lead to premature wear or damage. With its precise dimensions and reliable construction, the 6102-1582 Flange Yoke is a dependable choice for your driveline needs.
