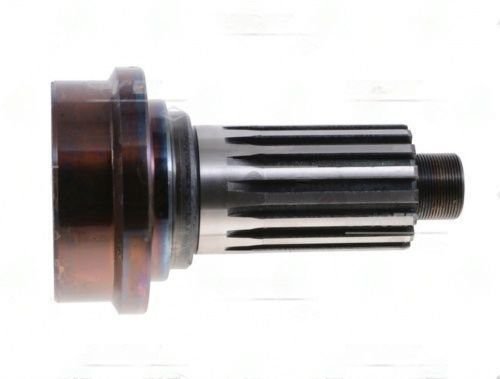

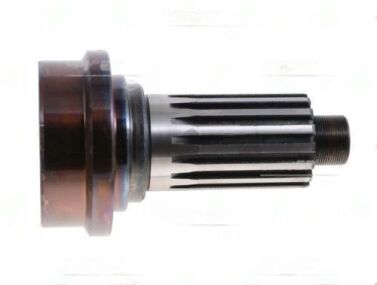

6.5-53-51 – Stub & Midship Shaft – 16 X 2.350 Splines – Bearing Dia 2.362″ – End To Weld 5.438
$339.67
Description
The 6.5-53-51 Stub & Midship Shaft is a critical component for Spicer applications, designed to handle robust torque transfer with precision. This shaft features 16 X 2.350 splines, ensuring a secure fit and reliable performance under demanding conditions. The bearing diameter measures 2.362 inches, which aligns perfectly with the requirements for optimal load handling.
Engineered with a tube diameter of 4.500 inches and a wall thickness of 0.259 inches, the 6.5-53-51 is built to withstand significant stress while maintaining structural integrity. The spline length of 2.750 inches and an end-to-weld measurement of 5.438 inches are specifically chosen to fit seamlessly into the driveline configuration, ensuring that the shaft maintains proper alignment and phasing during operation.
When installing the 6.5-53-51, keep in mind the following:
- Verify the spline count and ensure it matches the mating components.
- Check the runout to prevent vibration issues.
- Torque all bolts to the manufacturer’s specifications for secure installation.
- Inspect the entire driveline system for compatibility and alignment.
This shaft is not just a part; it’s a vital link in the driveline that ensures power is effectively transmitted from the transmission to the differential. With the 6.5-53-51, you can trust that you are using a component designed for durability and performance in demanding environments.
| Bearing dia |
2.362 |
|---|---|
| Butt dia |
3.984 |
| End to weld |
5.438 |
| Notes |
Spicer |
| Partn number |
6.5-53-51 |
| Remaining stock |
<10 |
| Splines count dia |
16 X 2.350 |
| Splines length |
2.750 |
| Tube dia |
4.500" |
| Tube wall |
0.259 |
| Style |
FIXED |
