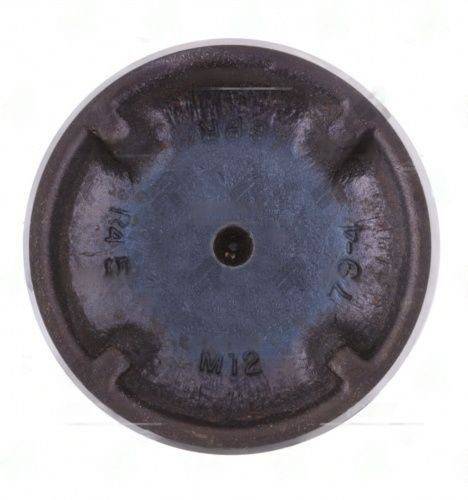

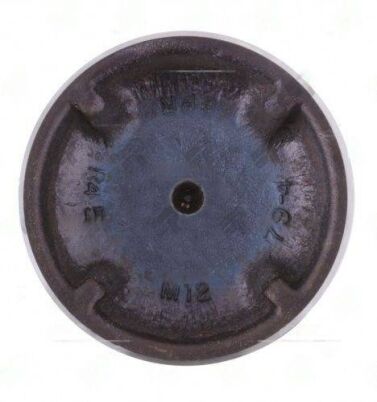

6.5-40-201 – Stub & Midship Shaft – 16 X 3.000 Splines – Butt Dia 4.234″ – Tube Dia Wall 4.500X0.134
$127.17
Description
When working with the 6.5-40-201 Stub & Midship Shaft, it’s crucial to ensure that every detail aligns perfectly for optimal performance. This component features 16 X 3.000 splines, a butt diameter of 4.234″, and a tube wall thickness of 0.134″. The length from end to weld is 9.469″, making it essential to verify these measurements against your application before installation.
One common mistake is mismatching the spline count; always double-check that the 16 splines fit the corresponding yoke or flange. Additionally, ensure that the tube diameter and wall thickness are appropriate for your setup. The critical speed limits of this shaft depend heavily on its dimensions, so proper installation and balancing are key to preventing vibrations that could lead to premature failure.
- Verify spline count and diameter before installation.
- Check the butt diameter and tube wall thickness for compatibility.
- Ensure proper alignment and phasing during installation.
- Torque all fasteners to the manufacturer’s specifications.
- Balance the shaft if any vibrations are detected post-installation.
The 6.5-40-201 Stub & Midship Shaft is designed to handle the torque transmission demands of your drivetrain, ensuring reliability and performance in various applications. Remember, a well-installed shaft is critical for the longevity of your driveline components.
| Butt dia | 4.234 |
|---|---|
| End to weld | 9.469 |
| Partn number | 6.5-40-201 |
| Remaining stock | <10 |
| Splines count dia | 16 X 3.000 |
| Splines length | 4.500 |
| Tube dia | 4.500" |
| Tube wall | 0.134" |
| Style | Slip |
