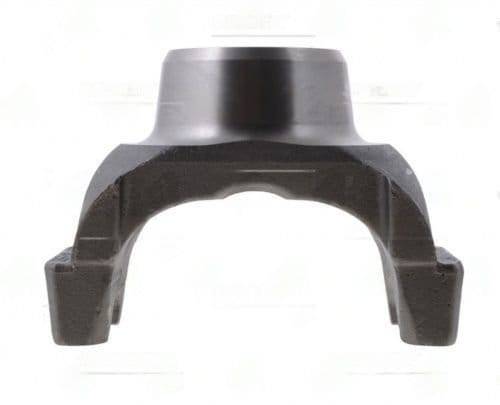

6.5-4-4631-1 – End Yoke – 1810 Series – 2.794″ Splines Dia – 54 Spline

The 6.5-4-4631-1 End Yoke is a crucial component in your driveline, providing the necessary interface for torque transfer between the driveshaft and the powertrain or axle assembly. With a spline diameter of 2.794 inches and a total of 54 splines, this yoke is engineered to fit 1810 Series applications, ensuring compatibility with the corresponding U-joint cap diameter and cross width.

One of the key specifications of the 6.5-4-4631-1 is its 5.652-inch measurement from the center of the joint to the end of the yoke. This dimension is vital as it determines the overall length of the driveshaft assembly, impacting the alignment and fitment within the vehicle’s drivetrain. Additionally, the hub diameter is 0.000 inches, indicating that this yoke is designed for direct attachment to a companion flange or for welding to tubing.

When installing the 6.5-4-4631-1, it’s essential to verify the spline engagement depth and ensure proper phasing with the opposite yoke. Never force the spline entry, as this can lead to premature wear or failure. Here are some important considerations:

• Check spline count and diameter before ordering.
• Ensure compatibility with 1810 Series U-joints.
• Inspect for proper alignment during installation.

By choosing the 6.5-4-4631-1 End Yoke, you’re ensuring a reliable connection in your driveline, capable of handling the demands of your application.
