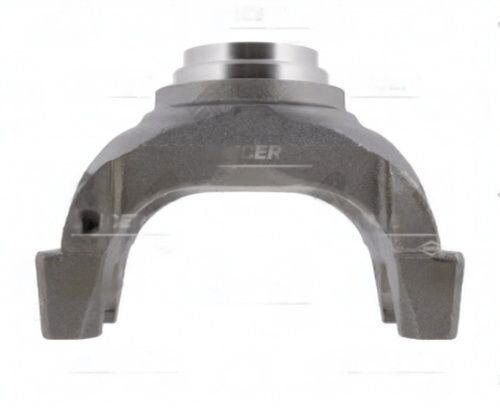

6.5-4-3591-1 – End Yoke – 1810 Series – 2.390″ Splines Dia – 2.875″ Hub Dia
$153.85
1 in stock
Description
The 6.5-4-3591-1 End Yoke is a crucial component for effective torque transfer between the driveshaft and the powertrain or axle assembly. Designed to meet 1810 Series specifications, this yoke features a 2.390″ spline diameter and 46 splines, ensuring compatibility with the corresponding U-joint. The 2.875″ hub diameter is tailored for robust performance, allowing for a secure fit with the mating components.
One important aspect of the 6.5-4-3591-1 is its hub diameter, which is noted as not ground. This means that the yoke may require additional machining to achieve the desired fitment in specific applications. It’s essential to verify the spline engagement depth and ensure proper phasing with the opposite yoke to avoid driveline vibrations or premature wear.
- Check spline count: 46 splines for accurate fit.
- Verify spline diameter: 2.390″ for compatibility.
- Ensure hub diameter: 2.875″ for proper mating.
- Installation tip: inspect the yoke for any signs of wear before installation.
- Note: HUB DIAMETER NOT GROUND may require machining.
In summary, the 6.5-4-3591-1 End Yoke is engineered for reliability and performance in demanding applications. Its design addresses the need for strength and durability while allowing for the necessary adjustments during installation. Always ensure that the specifications align with your vehicle’s requirements for optimal performance.
| Cj to end |
5.500" |
|---|---|
| Hub dia |
2.875 |
| Notes |
HUB DIAMETER NOT GROUND |
| Partn number |
6.5-4-3591-1 |
| Series |
1810 |
| Splines count |
46 |
| Splines dia |
2.390" |
| Style |
HR |
| Through hole |
2.750" |
