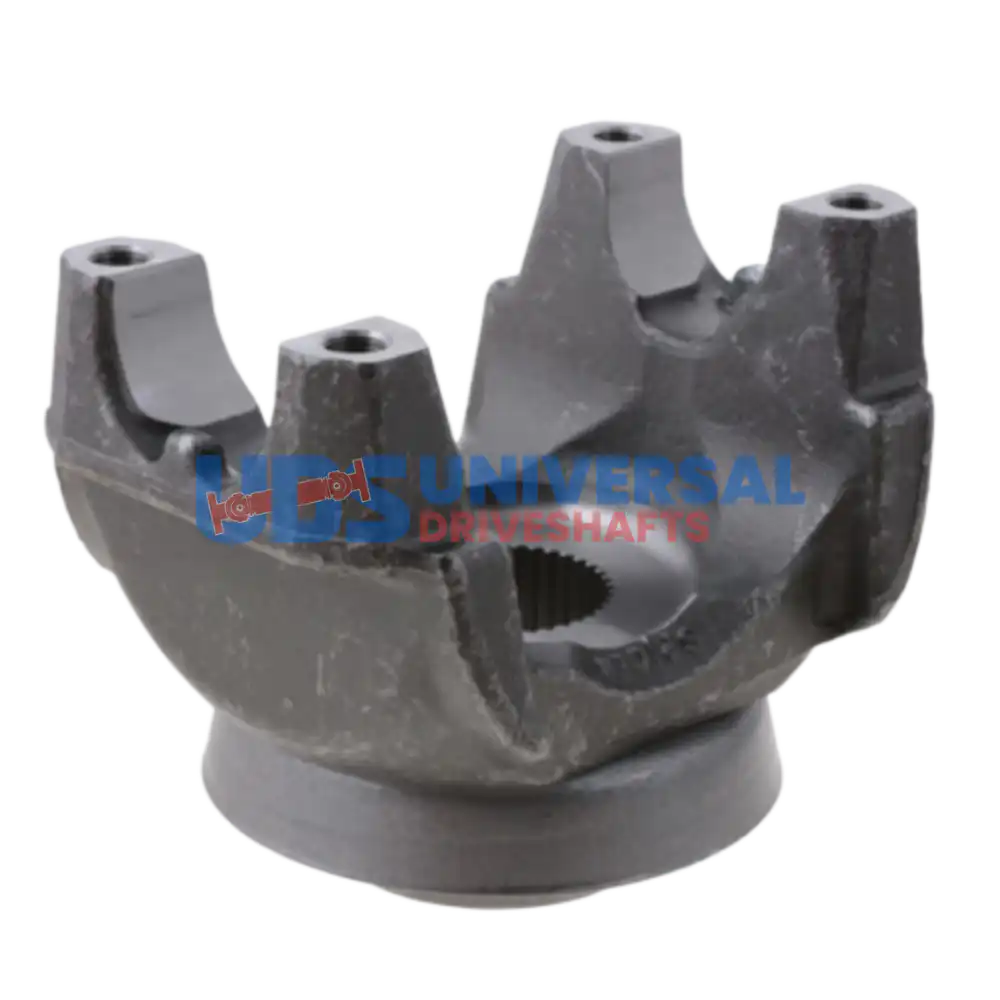

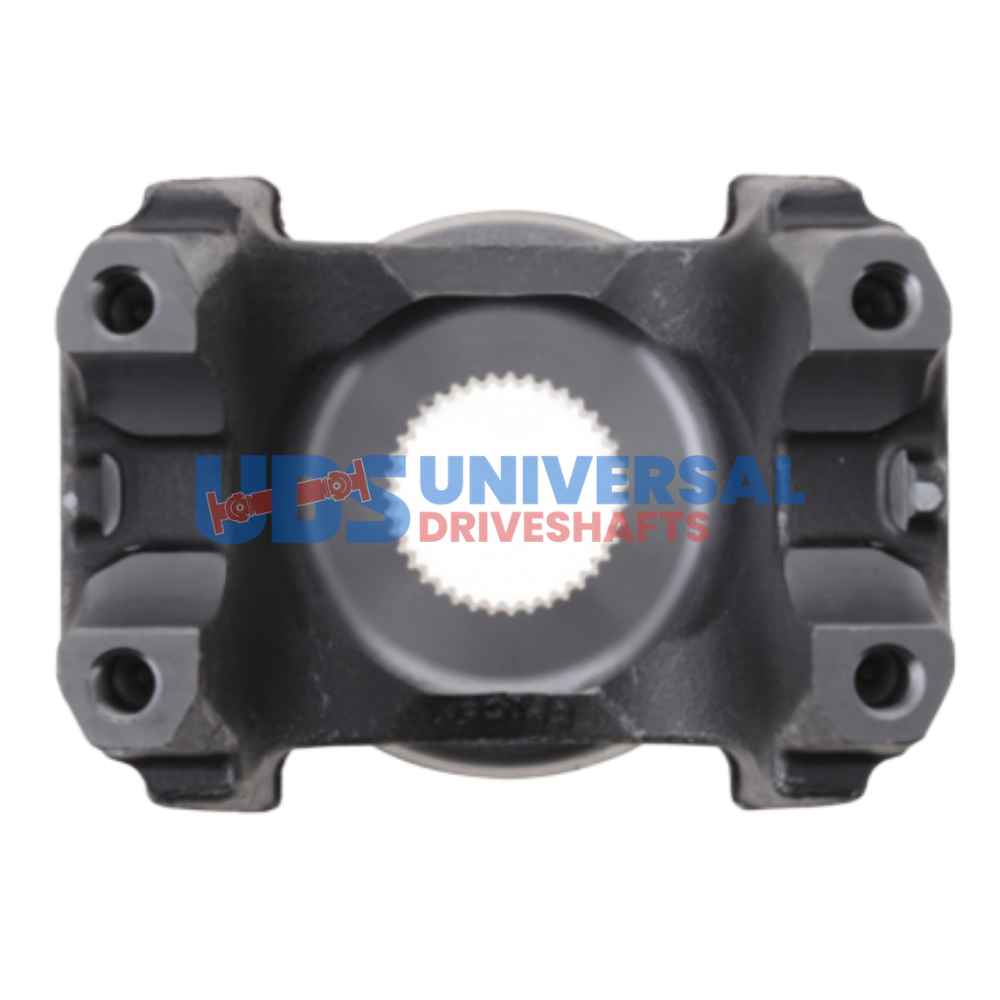

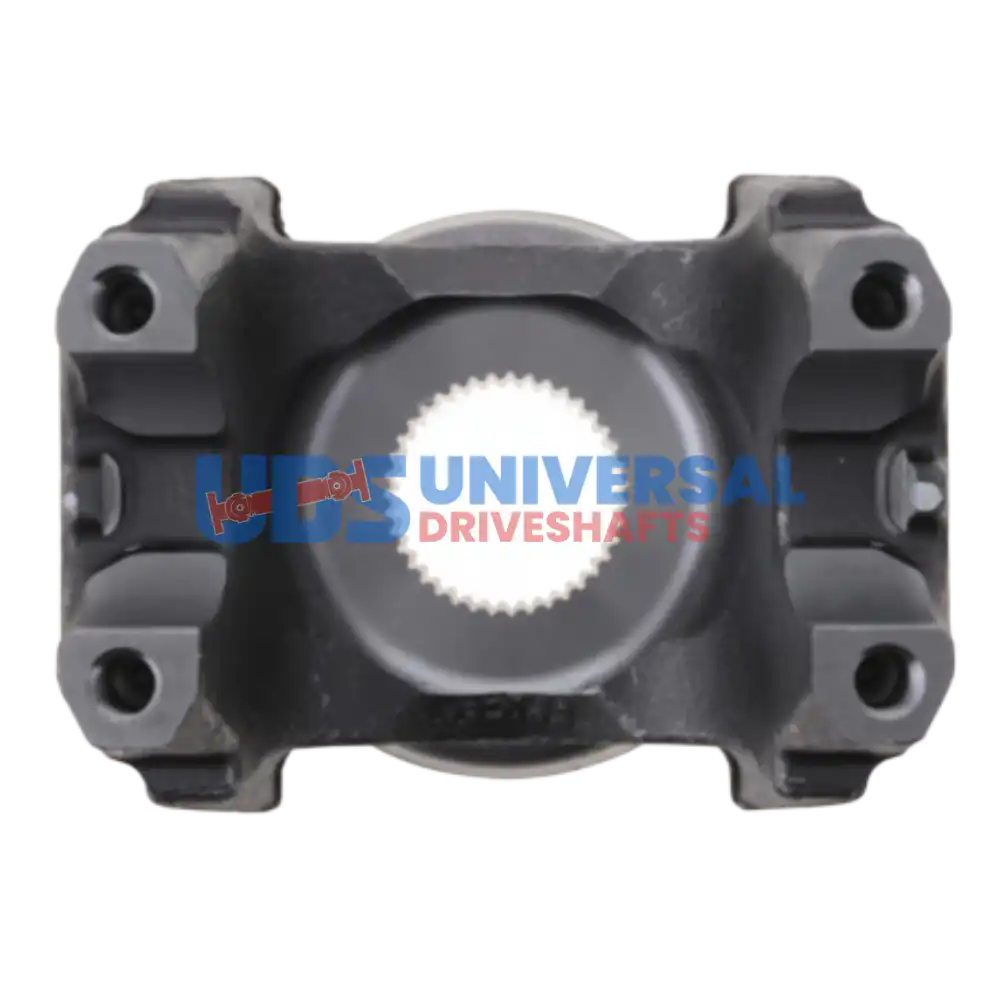

6-4-7631-1X End Yoke 1710HR Differential Yoke

When working with the 6-4-7631-1X end yoke, it’s crucial to understand its specifications and installation requirements. This yoke belongs to the 1710 Series, featuring 39 splines with a diameter of 2.024 inches. The hub diameter measures 3.000 inches, and the through hole is 2.312 inches, making it suitable for heavy-duty applications.

Before installation, verify the spline count and ensure it matches the output shaft. A common mistake is mismatching the spline count, which can lead to improper fitment and potential failure. Make sure to check the centerline to end distance of 5.156 inches to ensure proper alignment with your driveline setup.

Here are some installation tips for the 6-4-7631-1X:

• Confirm spline engagement depth before sliding the yoke onto the shaft.
• Check phasing with the opposite yoke to avoid vibrations.
• Do not force the spline entry; it should slide in smoothly.
• Inspect the mating components for wear or damage.
• Torque fasteners to the manufacturer's specifications for secure attachment.

Utilizing the 6-4-7631-1X correctly will ensure a reliable connection in your driveline system. This yoke is built to withstand demanding conditions, making it a dependable choice for performance builders and fleet technicians alike.
