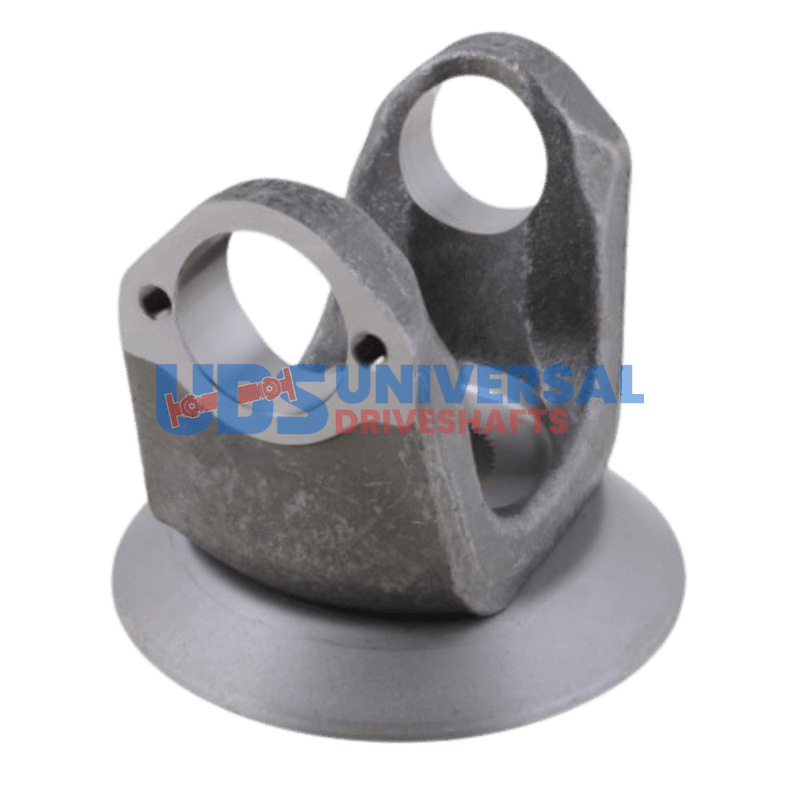

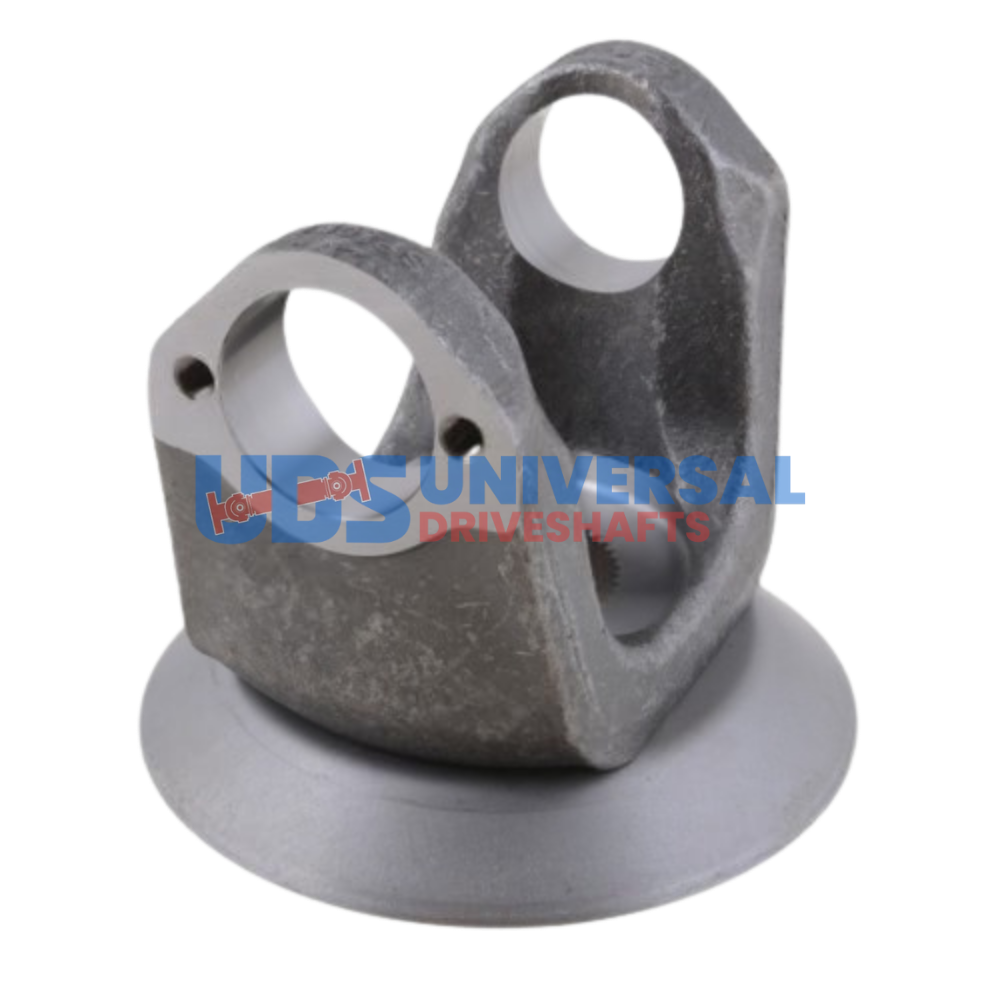

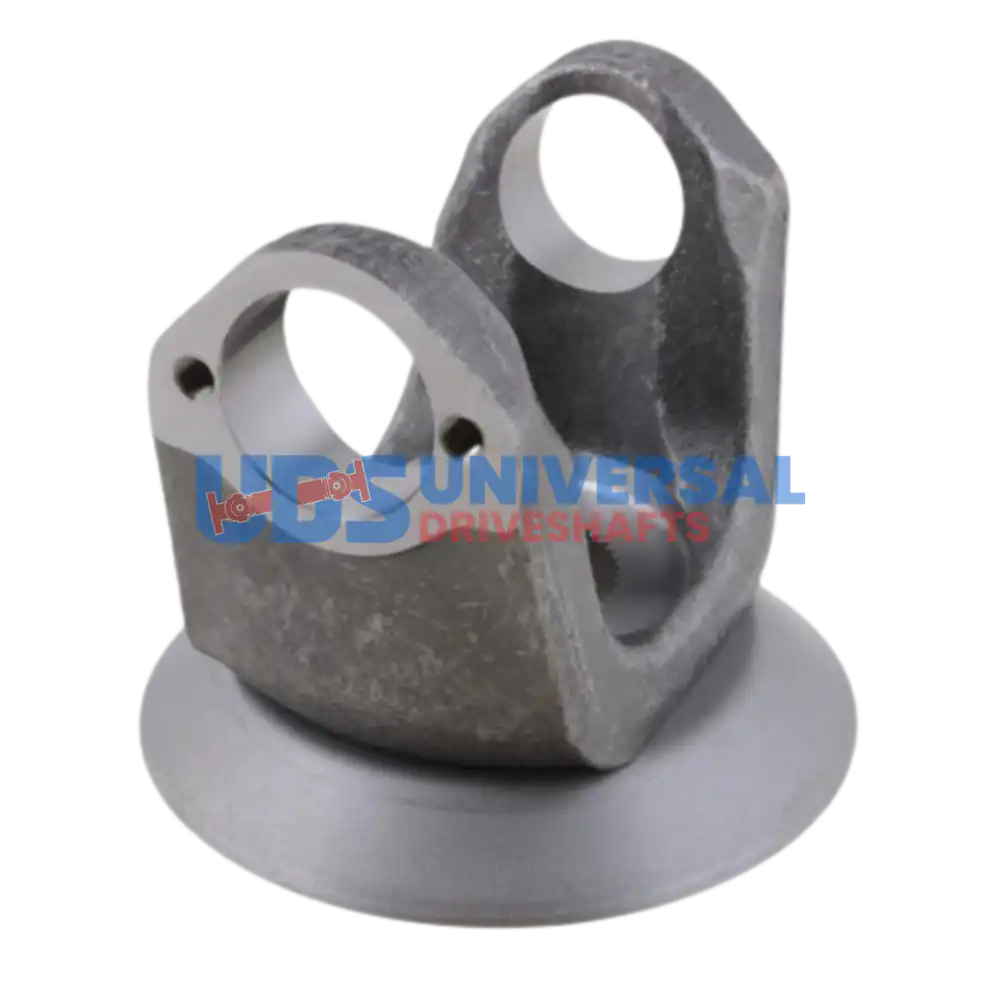

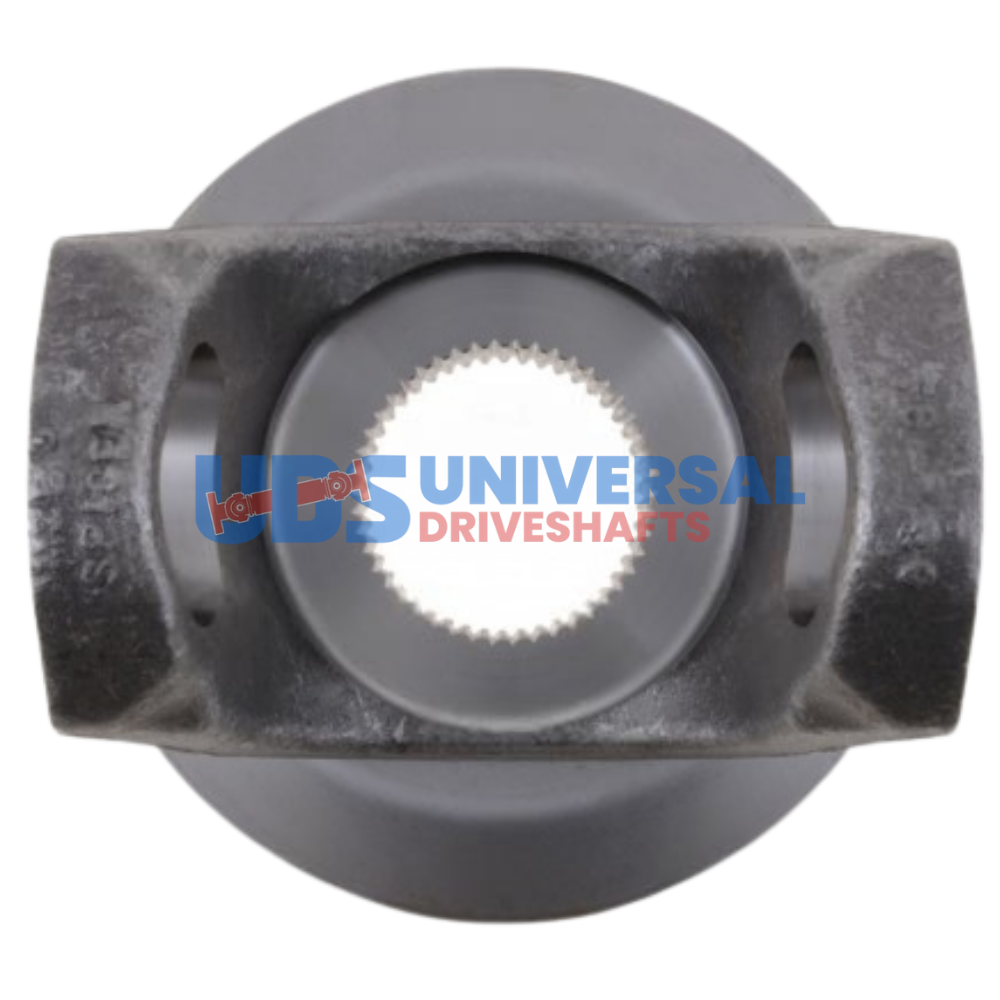

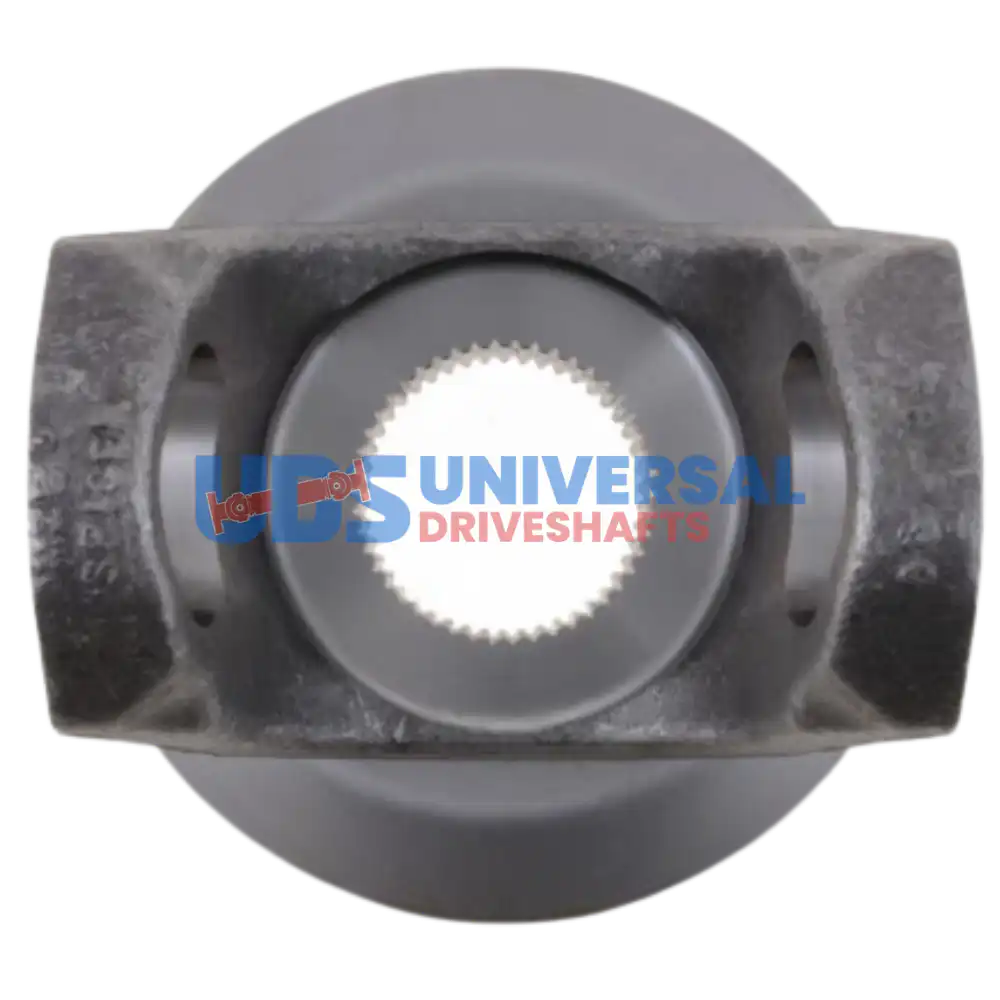

6-4-7181-1X – End Yoke – 46 x 2.390″ Splines – 5.391″ Cj To End – 3.250″ Hub Dia – Partn Number 6-4-7181X
$397.20
1 in stock
18 People watching this product now!
Description
The 6-4-7181-1X End Yoke features 46 splines and a 2.390″ spline diameter, designed for heavy-duty applications.
Full Description
The 6-4-7181-1X End Yoke is a robust component engineered for demanding driveline applications. This yoke is part of the 1710 Series, which is known for its strength and reliability. With a spline count of 46 and a spline diameter of 2.390 inches, it delivers the necessary torque transfer for heavy-duty vehicles.
In many applications, particularly in trucks and performance vehicles, the 1710 Series yokes are favored due to their ability to handle high loads and provide smooth operation. The 3.250-inch hub diameter and 2.328-inch through hole ensure a secure fit and compatibility with various driveline configurations.
When installing the 6-4-7181-1X, it’s crucial to check the spline engagement depth and ensure proper phasing with the opposite yoke. This will help prevent premature wear and failure. Here are some key specifications to keep in mind:
- 46 Splines
- 2.390" Spline Diameter
- 3.250" Hub Diameter
- 5.391" Centerline to End Distance
- Style BP
Overall, the 6-4-7181-1X End Yoke is an essential part for those looking to maintain or upgrade their driveline systems. Its design and specifications make it a reliable choice for both fabrication shops and fleet technicians.
Additional information
| Cj to end | 5.391 |
|---|---|
| Hub dia | 3.250" |
| Partn number | 6-4-7181X |
| Series | 1710 |
| Splines count | 46 |
| Splines dia | 2.390" |
| Style | BP |
| Through hole | 2.328 |
