6.3-4-1681-1 – End Yoke – 1760 Series – 2.794″ Splines Dia – 54 Spline
$234.72
1 in stock
Description

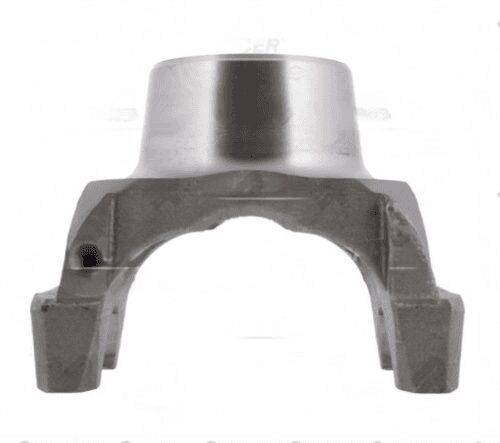

The 6.3-4-1681-1 End Yoke is a crucial component for efficient torque transfer in driveline systems. Designed for 1760 Series applications, this yoke features 54 splines with a 2.794″ spline diameter, ensuring compatibility with the corresponding U-joint. One of the standout features of this yoke is its hub diameter, which is not ground, making it suitable for specific applications where precision in hub diameter is less critical.
In many performance and heavy-duty applications, the integrity of the yoke is paramount. The 6.3-4-1681-1 connects the driveshaft to the transmission or differential, allowing for smooth power delivery and minimizing vibrations. When installing this yoke, it’s essential to check the spline engagement depth and verify phasing with the opposite yoke to prevent premature wear or failure.
- 54 splines for robust engagement
- 2.794″ spline diameter for optimal fit
- 0.000″ hub diameter, not ground for specific applications
- 5.625″ Cj to end length for precise alignment
- Through hole of 2.750″ for easy installation
Whether you’re working on a custom build or a fleet vehicle, the 6.3-4-1681-1 End Yoke is engineered to meet the demands of your driveline setup. Always ensure that the yoke is installed correctly to maintain the performance and longevity of your driveline components.
| Cj to end | 5.625 |
|---|---|
| Hub dia | 0.000" |
| Notes | HUB DIAMETER NOT GROUND |
| Partn number | 6.3-4-1681-1 |
| Series | 1760 |
| Splines count | 54 |
| Splines dia | 2.794 |
| Style | HR |
| Through hole | 2.750" |
