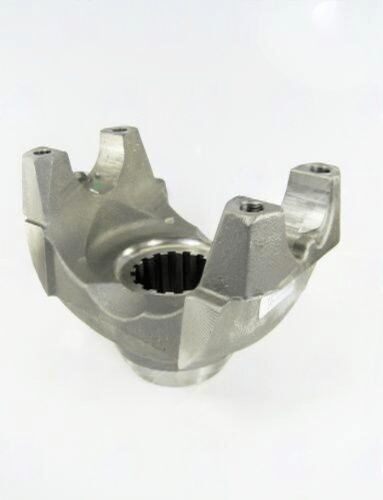

6.3-4-161-1 – End Yoke – 2.350″ Splines Dia – 2.875″ Hub Dia – 1760 Series
$134.33
1 in stock
Description
The 6.3-4-161-1 End Yoke is a critical component in your driveline, connecting the driveshaft to the transmission, transfer case, or differential. With a spline diameter of 2.350 inches, this yoke ensures a precise fit that is essential for maintaining the integrity of your driveline system. The 1760 Series designation indicates compatibility with specific U-joint configurations, making it vital to verify that your U-joint matches this yoke’s specifications.
Key dimensions include a hub diameter of 2.875 inches and a spline count of 16, both of which play a significant role in the overall performance and reliability of your driveline. The 5.500-inch distance from the center of the joint to the end of the yoke allows for proper alignment and engagement with mating components. Additionally, the through hole measures 2.750 inches, facilitating easy installation and ensuring that the yoke can handle the axial movement required during suspension travel.
- Verify spline count and diameter before installation.
- Ensure proper phasing with the opposite yoke.
- Check for adequate spline engagement depth.
- Use the correct torque specifications for bolting to companion flanges.
In summary, the 6.3-4-161-1 End Yoke is engineered for durability and precision in 1760 Series applications. Its specifications are designed to deliver reliable performance, making it an essential part of your driveline assembly.
| Cj to end | 5.500" |
|---|---|
| Hub dia | 2.875 |
| Partn number | 6.3-4-161-1 |
| Series | 1760 |
| Splines count | 16 |
| Splines dia | 2.350" |
| Style | HR |
| Through hole | 2.750" |
