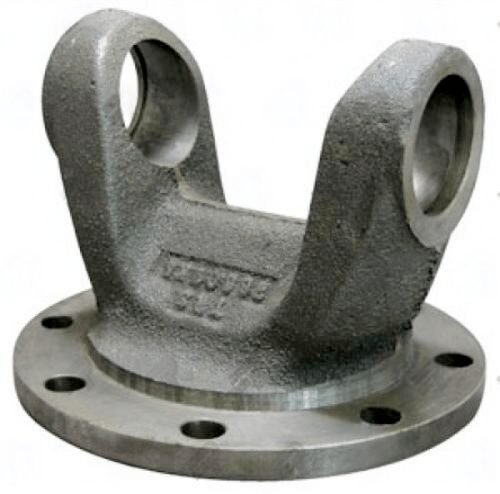

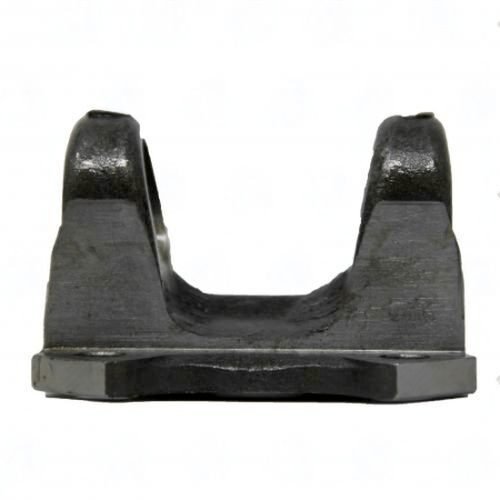

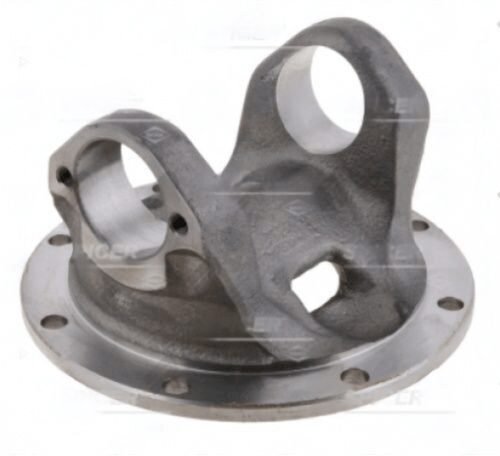

6-2-739 Flange Yoke1710 Series ,Holes: 8 x 0.438 Holes, Bolts Circle Diameter: 7.250, Pilot: 7.750M

The 6-2-739 Flange Yoke is engineered for the 1710 Series, making it a critical component for connecting driveshafts in heavy-duty applications. This yoke features a bolt circle diameter of 7.250 inches, which provides a robust interface for secure mounting. The eight bolt holes, each with a diameter of 0.438 inches, ensure a strong connection to the companion flange, allowing for efficient torque transfer.

With a pilot diameter of 7.750 inches (male), this yoke is designed to fit snugly into the mating components, minimizing play and enhancing the overall performance of the driveline. The distance from the center of the joint to the flat surface measures 3.000 inches, which is crucial for maintaining proper alignment during operation. This configuration addresses the need for stability and reliability in high-torque applications.

• Series: 1710
• Bolt Circle Diameter: 7.250 inches
• Bolt Hole Diameter: 0.438 inches
• Pilot Diameter: 7.750 inches (M)
• Number of Bolt Holes: 8

When installing the 6-2-739, ensure proper spline engagement and verify phasing with the opposite yoke to prevent vibration and premature wear. This yoke is a dependable choice for those looking to maintain or upgrade their driveline systems.
