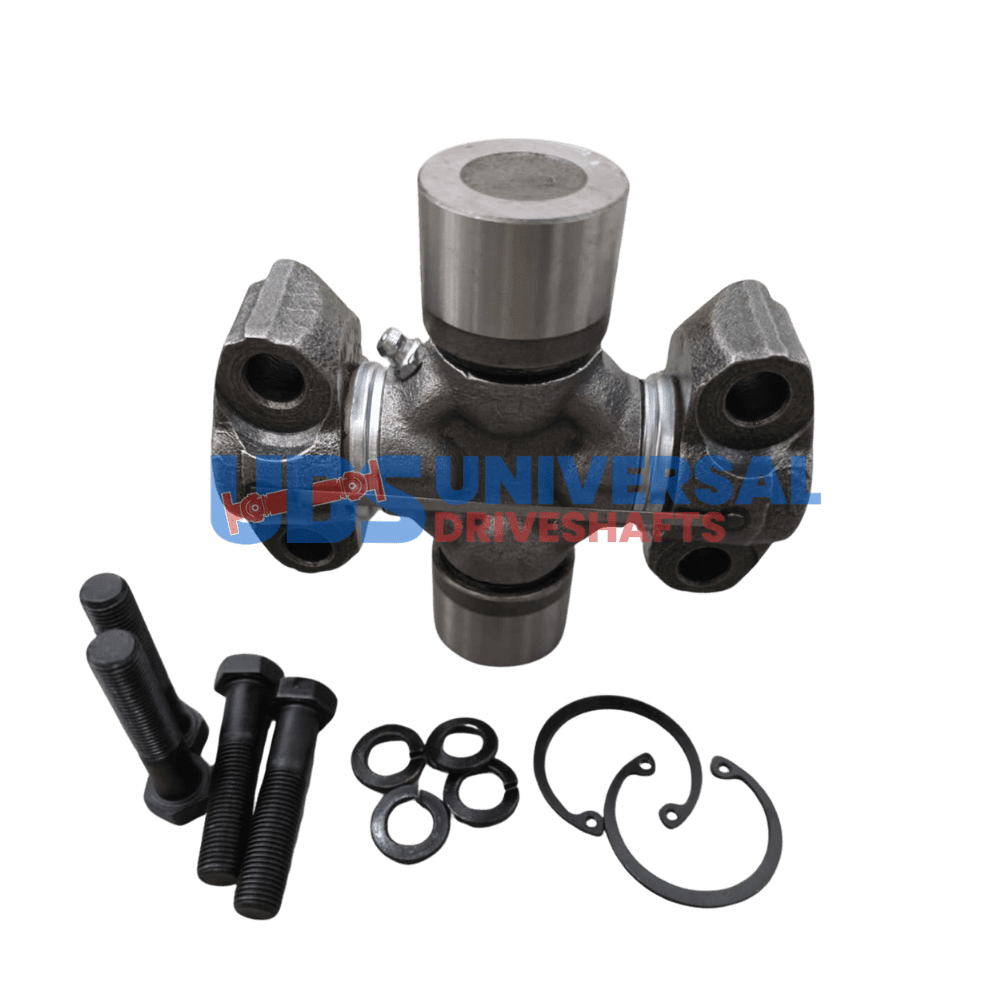

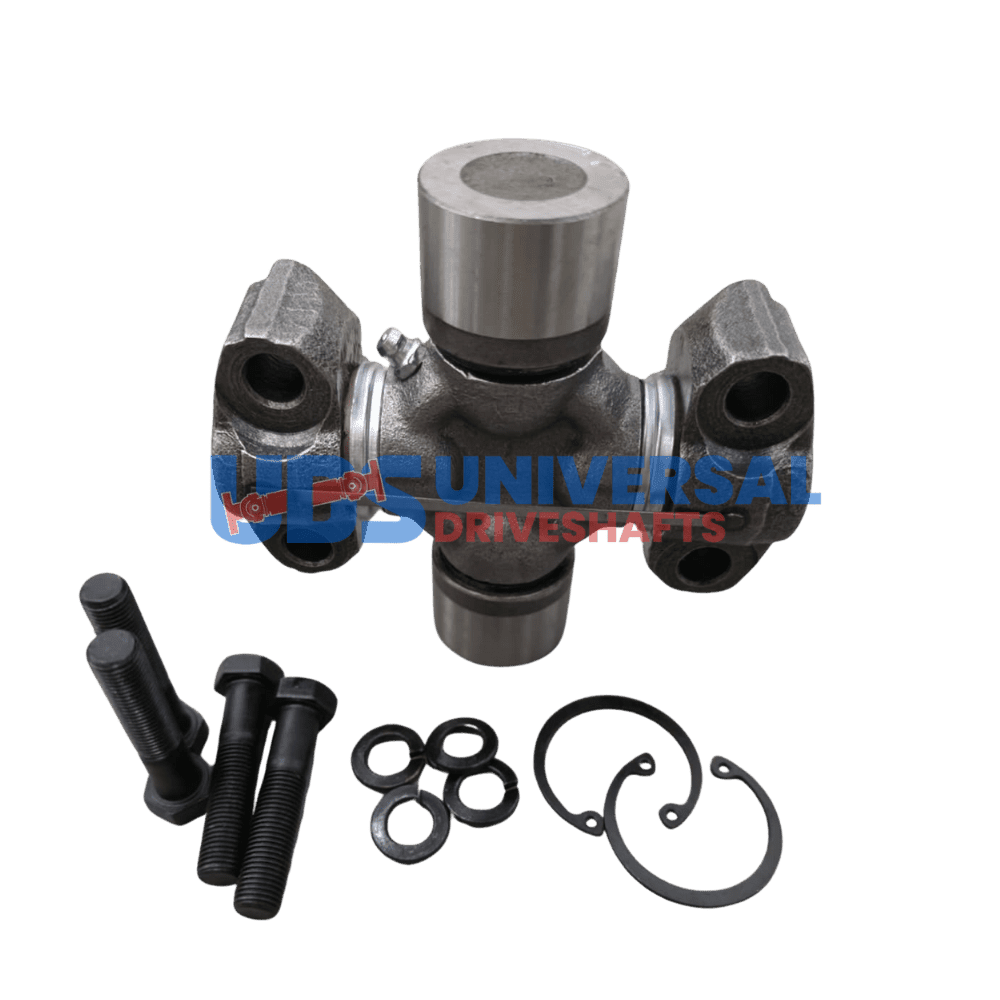

5C-3X Universal Joint 1480 5C HWD Conversion U Joint Heavy Duty - Image 1

5C-3X Universal Joint 1480 5C HWD Conversion U Joint Heavy Duty - Image 2

Click to enlarge

5C-3X Universal Joint 1480 5C HWD Conversion U Joint Heavy Duty

5C-3X Universal Joint 1480 5C HWD Conversion U Joint Heavy Duty - Image 2

Brand:

5C-3X Universal Joint 1480 5C HWD Conversion U Joint Heavy Duty

SKU: 5C-3XU

$49.95

20 in stock

18 People watching this product now!

Description

The UDS 5C-3X U-Joint features a sealed slip spline system with a Triple lip seal, thrust washer, and seal guard for reduced maintenance and increased torque capacity. Designed for the 1480 to 5C series, it combines an OSR and HWD style for robust performance and reliability.

Series: 1480 X 5C
Grease: Greasable
HWD / OSR
Between Bolts: 1.375″ X 1.688″
Lock Up: 4.188″ X 4.531″

Additional information

Brand	UDS
Cap dia 1	1.375
Cap dia 2	1.688
Lube	Y
Notes	MECH – 5C X 1480
Partn number	5C-3X
Remaining stock	<10
Series	1480 X 5
Style	COMBO
Width 1	4.188
Width 2	4.531
