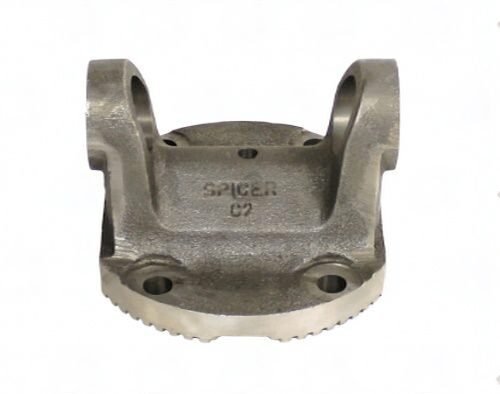

5502-150KV – Flange Yokes – 1550 Series – Bolt Circle Dia 5.100″ – Cj To Flat 2.750

SKU: 5502-150KV

$179.18

0 in stock

11 People watching this product now!

Description

The 5502-150KVU Flange Yoke is a robust component in the 1550 Series, designed for high-performance driveshaft applications. It features a 150mm (5.870″) outside swing or pilot diameter, providing a secure fit for demanding setups. The bolt hole circle diameter is 129.54mm (5.100″), with four bolt holes each measuring 12.95mm (0.510″). The yoke’s length from the flat of the flange to the center of the U-joint cap is 69.85mm (2.750″), and it weighs 7 lbs. This yoke is ideal for heavy-duty use, offering reliability and strength in challenging conditions.

Additional information

Bolt circle dia	5.100
Bolt hole dia	0.510
Cj to flat	2.750
Partn number	5502-150KV
Pilot dia	OD , SERRATED
Series	1550
Bolt Holes	4
