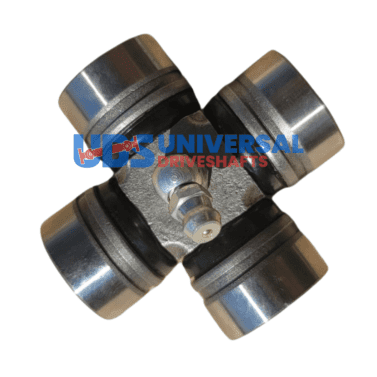

5-92X Universal Joint – L6N Series – ISR Style

5-92X U Joint is specifically designed for the Rockwell L6N series 861. This joint features a cap diameter of 0.971″ and a width of 1.445″, making it essential for transferring torque between angled shafts effectively. When installing this U Joint, ensure you check the grease fitting for proper lubrication, as this greaseable design significantly extends the service life compared to sealed joints.

Before you begin installation, verify that the snap rings are fully seated to avoid any binding during operation. A common mistake is to overlook the alignment of the U Joint, which can lead to premature failure and noticeable symptoms like clunking or vibration. Always inspect the mating components for rust or wear, especially around the caps, as rust-colored dust can indicate a failing joint.

• Check cap diameter: 0.971″ for proper fit.
• Ensure width: 1.445″ aligns with your application.
• Verify full seating of snap rings to prevent binding.
• Lubricate before installation to maximize lifespan.
• Inspect for rust or dust at caps as a failure symptom.

By following these installation tips, you can ensure that the 5-92X U Joint performs reliably in your driveline setup. This joint is a crucial component for maintaining the integrity and performance of your Rockwell L6N series 861 application.
