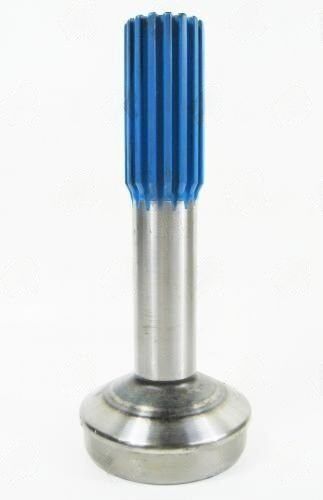

5-53-141 – Stub & Midship Shaft – 10 X 1.750 Splines – Bearing Dia 1.772″ – Tube Dia 3.500
$50.04
18 People watching this product now!
Description
The 5-53-141 Stub & Midship Shaft features 10 X 1.750 splines and a 1.772″ bearing diameter for reliable torque transfer.
Full Description
5-53-141 is a Stub & Midship Shaft designed to deliver reliable torque transmission in various driveline applications. With a spline count of 10 X 1.750, this shaft is engineered to fit seamlessly into systems requiring precise alignment and strength. The 1.772" bearing diameter and 3.500" tube diameter ensure compatibility with a range of vehicles, particularly those with demanding driveline configurations.
In high-performance applications, the integrity of the Stub & Midship Shaft is crucial. The 5-53-141 features a tube wall thickness of 0.134", providing the necessary durability to withstand the stresses of torque transfer. The end-to-weld measurement of 4.281" and a spline length of 2.000" are designed to meet specific installation requirements, ensuring a snug fit and optimal performance.
When installing the 5-53-141, keep these tips in mind:
- Verify spline count and ensure proper alignment with mating components.
- Check runout to prevent vibration issues.
- Torque bolts to the manufacturer’s specifications for secure installation.
- Inspect the entire driveline system for compatibility.
Overall, the 5-53-141 Stub & Midship Shaft is a vital component for those looking to maintain or upgrade their driveline systems, delivering the performance and reliability needed in demanding environments.
Additional information
| Bearing dia | 1.772 |
|---|---|
| Butt dia | 3.250 |
| End to weld | 4.281 |
| Partn number | 5-53-141 |
| Splines count dia | 10 X 1.750 |
| Splines length | 2.000 |
| Tube dia | 3.500 |
| Tube wall | 0.134" |
| Style | FIXED |
