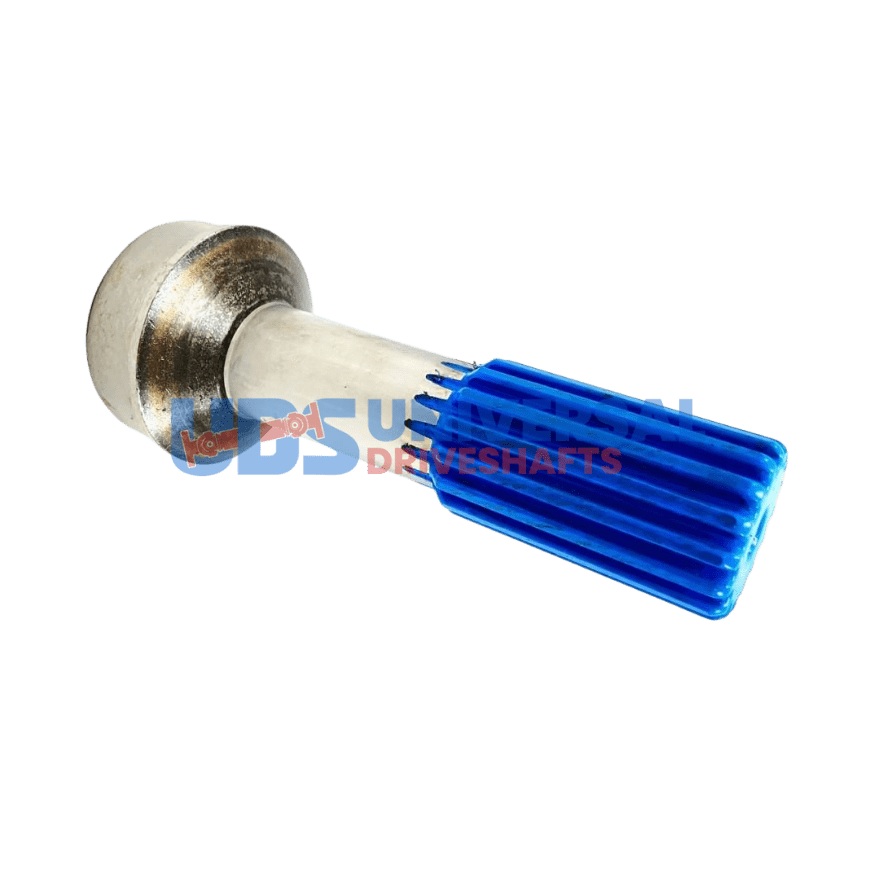

Spline Stub, 2.000×16 Spline, 3.500 X .134 Tube – 5-40-1191 – UDS

Spline Stub & Midship Shaft is a critical component for transmitting torque from your transmission to the differential. With 16 x 2.000 splines, this shaft is engineered to handle the demands of your driveline effectively. Before installation, always verify the spline count and ensure it matches your output shaft. A common pitfall is mixing up spline sizes, which can lead to significant installation headaches.

Measuring 3.500″ in diameter and featuring a wall thickness of 0.134″, this shaft balances strength and weight, ensuring it can withstand the rigors of performance applications. The butt diameter of 3.250″ and a spline length of 3.500″ provide the necessary fitment for various setups. The end-to-weld measurement of 7.562″ is crucial for maintaining the correct alignment and phasing during installation.

• Check spline count against the transmission output before installation.
• Ensure the tube diameter of 3.500″ fits your application.
• Verify the end-to-weld measurement of 7.562″ for correct alignment.
• Inspect for any runout and balance if necessary to avoid vibrations.
• Torque all fasteners to the manufacturer’s specifications for optimal performance.

By following these steps, you can ensure that the Spline Stub & Midship Shaft operates smoothly, delivering reliable torque transfer and enhancing your vehicle’s performance.
