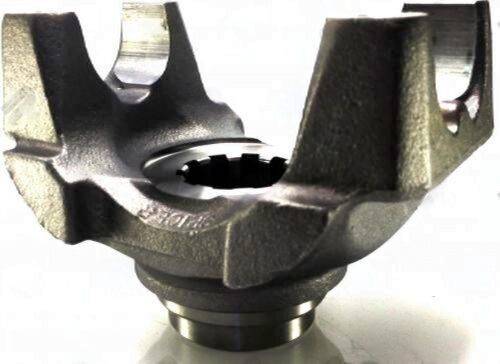

5-4-1721-1 – End Yoke – 1610 Series – 1.750″ Splines Dia – 2.188″ Hub Dia
$161.02
1 in stock
Description
5-4-1721-1 is an End Yoke designed for COUPLING SHAFT YOKE applications. This component plays a vital role in connecting the driveshaft to the powertrain or axle assembly, ensuring efficient torque transfer. Before installation, it’s crucial to verify the spline count and diameter. This yoke features 10 splines with a diameter of 1.750″ and a hub diameter of 2.188″. The 1610 Series designation is important as it determines the mating U-joint cap diameter and cross width, so make sure you have the right U-joint for a proper fit.
When preparing to install the 5-4-1721-1, keep these tips in mind:
- Check spline engagement depth to ensure a snug fit.
- Verify phasing with the opposite yoke to avoid vibrations.
- Never force spline entry; align it properly to prevent damage.
- Inspect the hub diameter and through hole (2.250″) for compatibility.
- Confirm that the yoke style (HR) matches your application requirements.
By following these guidelines, you can avoid common pitfalls and ensure a successful installation of the 5-4-1721-1 End Yoke. This component is engineered to handle the demands of your driveline system, making it a reliable choice for your coupling needs.
| Cj to end |
4.125 |
|---|---|
| Hub dia |
2.188 |
| Notes |
COUPLING SHAFT YOKE |
| Partn number |
5-4-1721-1 |
| Series |
1610 |
| Splines count |
10 |
| Splines dia |
1.750 |
| Style |
HR |
| Through hole |
2.250" |
