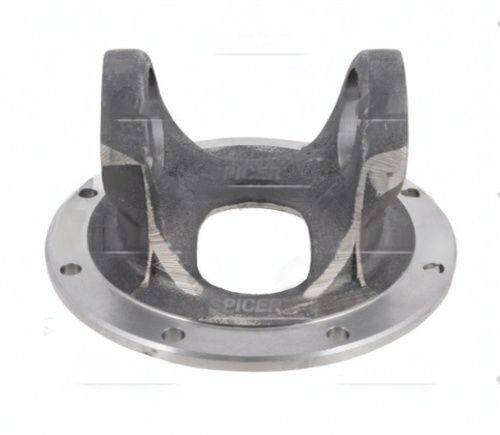

5-2-629 – Flange Yokes – 1610 Series – Bolt Circle Dia 7.250" – Bolt Hole Dia 0.375 - Image 1

Click to enlarge

5-2-629 – Flange Yokes – 1610 Series – Bolt Circle Dia 7.250″ – Bolt Hole Dia 0.375

SKU: 5-2-629

$127.77

0 in stock

10 People watching this product now!

Description

The Flange Yoke 5-2-629 from the 1610 Series is a robust bearing plate style yoke designed for heavy-duty applications. It features a flange or swing diameter of 8 inches and a bolt circle diameter of 7.250 inches. The yoke has eight drilled bolt holes, each with a diameter of 0.375 inches. The center pilot hole measures 7.750 inches in diameter and is male. This yoke is compatible with a U-joint width of 5.312 inches and a bearing cap diameter of 1.875 inches. The distance from the center of the U-joint bore to the face of the flange is 2.750 inches.

Additional information

Bolt circle dia	7.250
Bolt hole dia	0.375
Cj to flat	2.750
Partn number	5-2-0629
Pilot dia	7.750 , M
Series	1610
Bolt Holes	8
