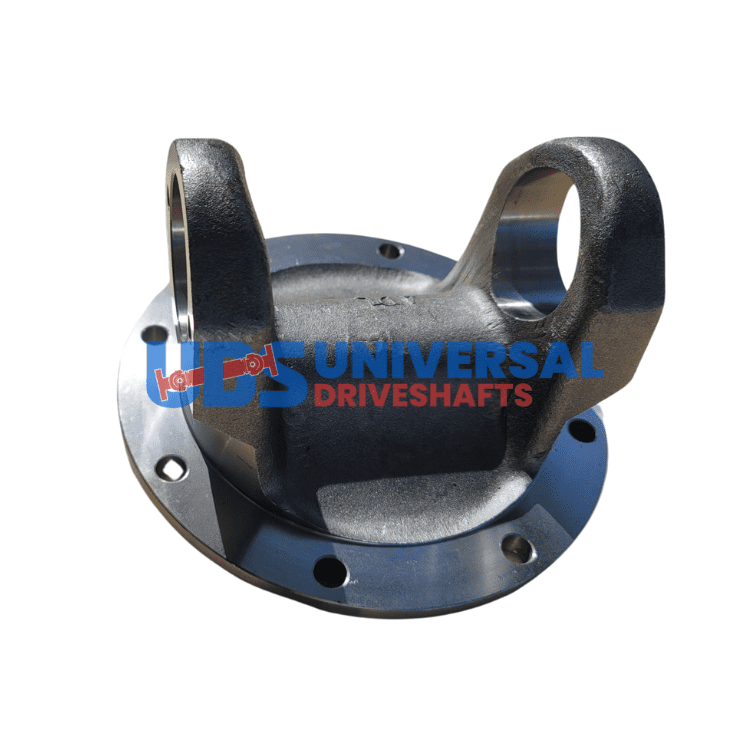

5-2-279 Flange Yoke 1610 series, 8 x .375 Holes on 6.125 BCD, 6.625 MALE pilot

The 5-2-279 Flange Yoke is a critical component in your driveline setup, especially for those working with 1610 Series applications. Before installation, confirm that the spline count and diameter match your driveshaft. This yoke features a bolt circle diameter of 6.125 inches and is equipped with eight bolt holes, each measuring 0.375 inches in diameter. The pilot diameter is 6.625 inches, and it’s a male configuration, which is essential for proper fitment. When installing the 5-2-279, pay close attention to the phasing of the yoke with the opposite yoke. Misalignment can lead to vibrations and premature wear. A common mistake is not verifying the engagement depth of the spline; ensure it’s fully seated to avoid any axial play. The Cj to flat measurement of 3.000 inches is also crucial for ensuring the correct orientation and fit.

• Check spline count and diameter before installation.
• Verify phasing with the opposite yoke to prevent vibrations.
• Ensure the spline is fully seated to avoid axial play.
• Confirm the Cj to flat measurement for proper orientation.
• Use a torque wrench to tighten bolts to specification.

With the right attention to detail, the 5-2-279 Flange Yoke will provide a reliable connection for your driveline system, ensuring optimal performance and longevity.
