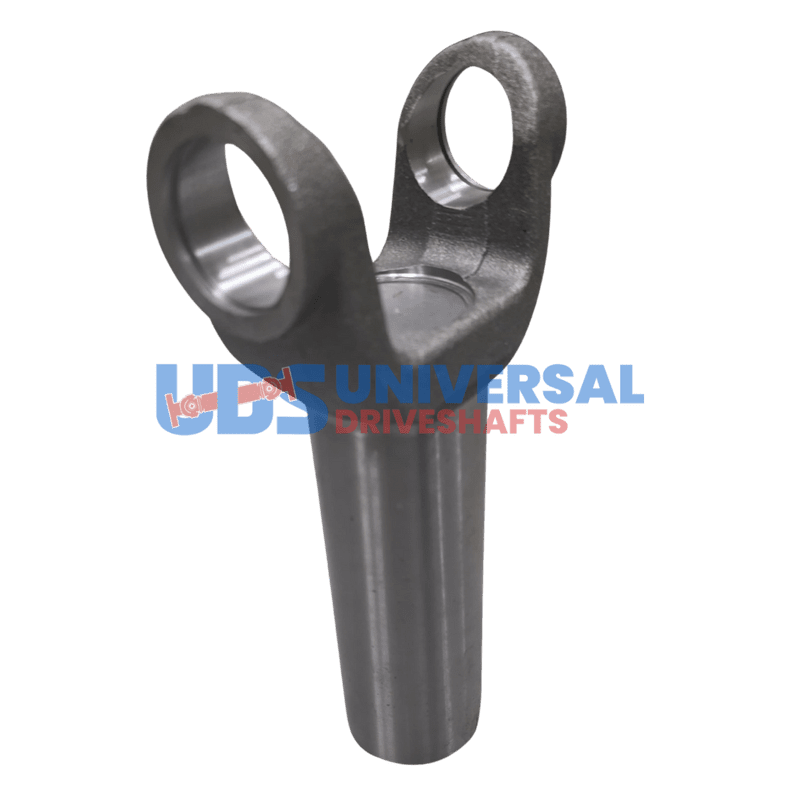

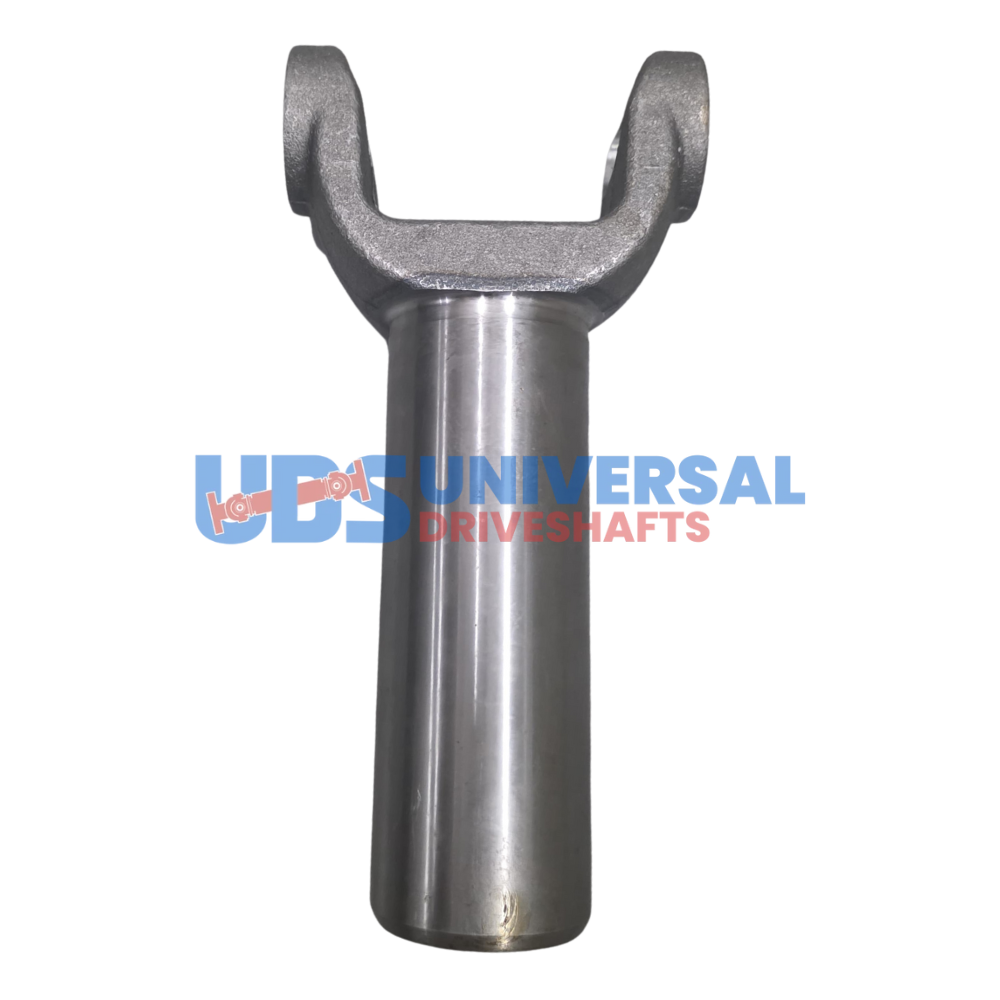

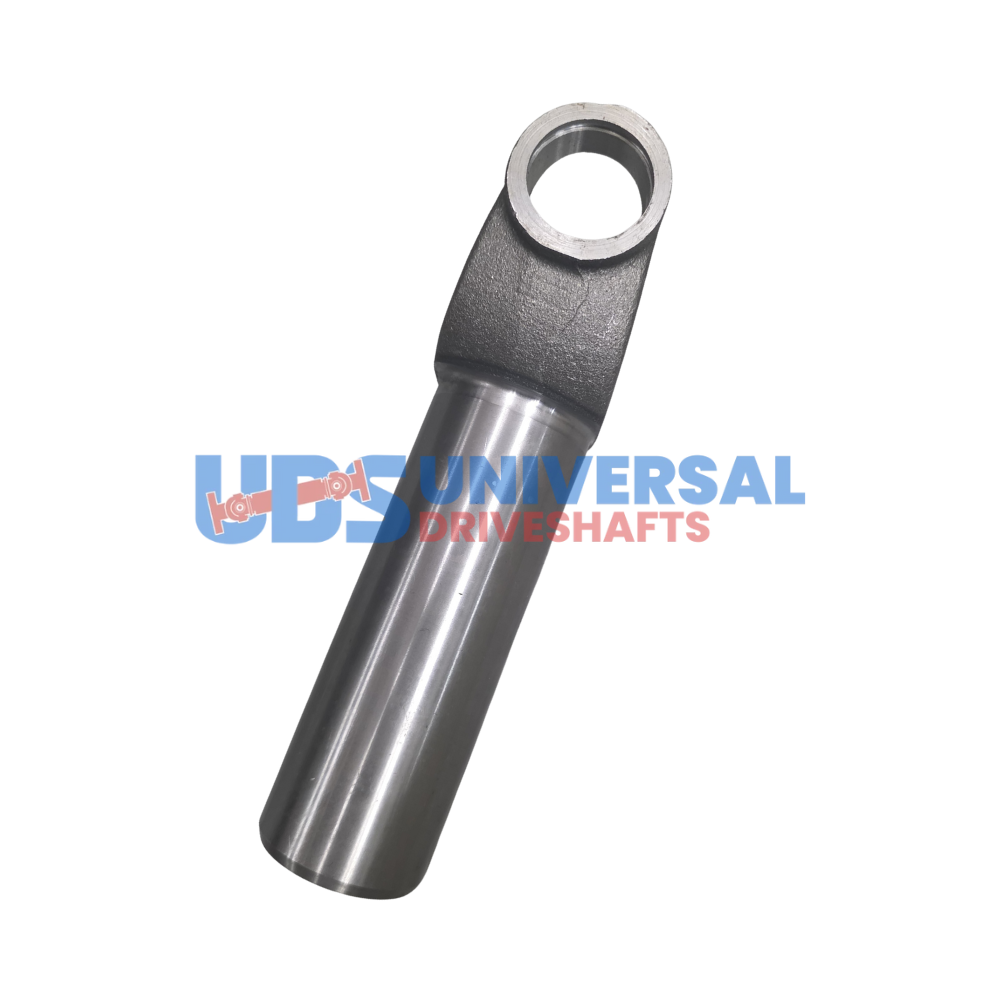

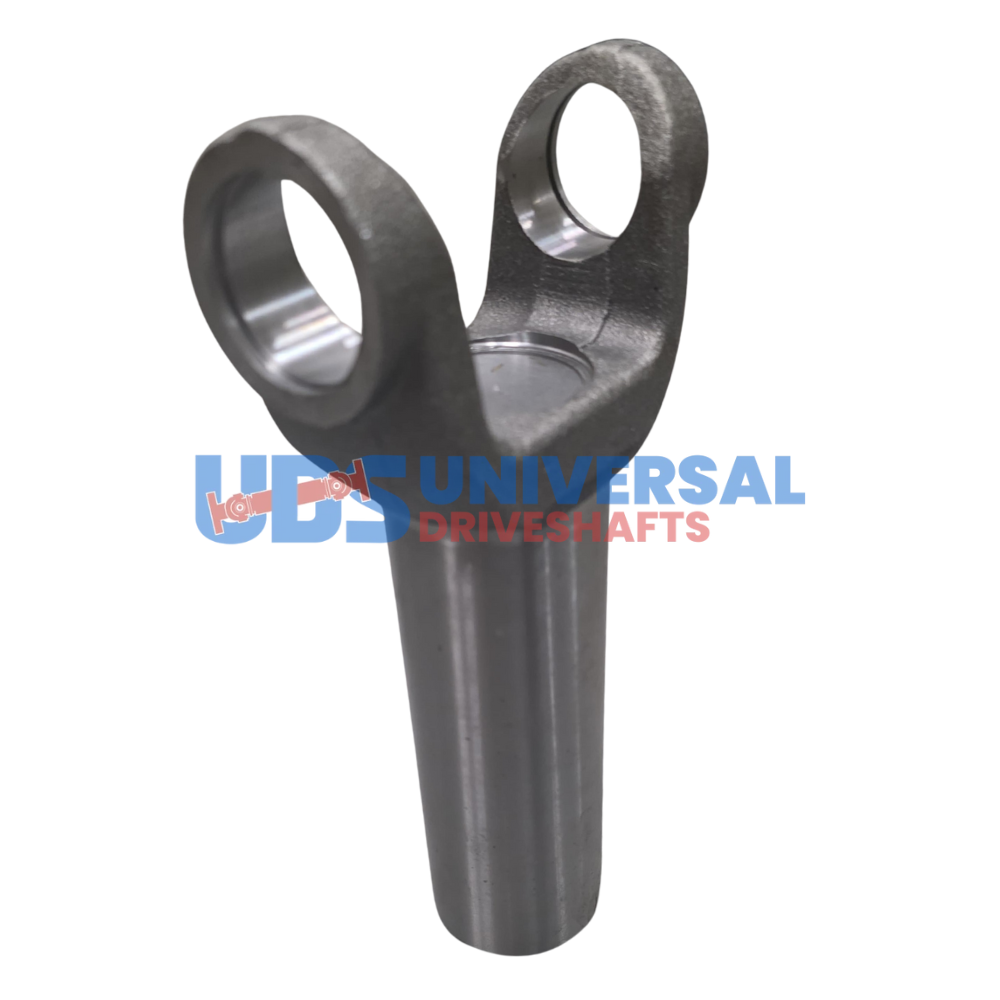

The 4803-318 Transmission Slip Yoke is designed for various Chrysler, Dodge, and GM vehicles with 31-spline output shafts, including the 68RFE transmission and 4WD Duramax with 263XHD and 241DHD transfer cases. It features a 1480 series design with an outside snap ring style. The yoke has a U-joint cap diameter of 1.375 inches, a U-joint width of 4.188 inches, and a slip yoke length of 8.338 inches (211.80 mm) from centerline to end of spline. The barrel diameter is 2.201 inches (55.90 mm), and the spline outside diameter is 1.614 inches (41.0 mm) with 31 splines (30 with blind spots 31). It does not include a spline counter bore.
4803-318 Transmission Yoke 1480 Spline Counts 30/31 Hub: 2.201 Center U Joint To End 8.339
$85.16
50 in stock
11 People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders from your dashboard
Description
Additional information
| Center u joint to end | 8.339 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 2.201 |
| Notes | Nickel Plated, GM |
| Partn number | 4803-318 |
| Remaining stock | <10 |
| Series | 1480 |
| Splines count dia | 30/31 X 1.615 |
