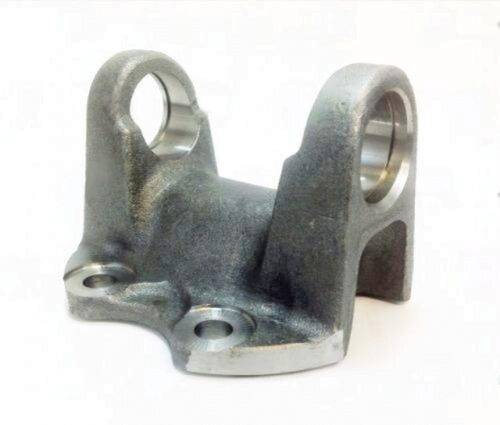

The 4802-1244U Flange Yoke is a robust component designed for the 1480 Series U-joints. It features a snap ring design and a bolt circle diameter of 4.330 inches. The universal joint retaining width is 4.438 inches, with a bearing diameter of 1.375 inches. The male pilot diameter is 3.150 inches, and the centerline of the joint to the flange face is 2.441 inches. This yoke is ideal for high-strength driveshaft applications.
