4802-1242 – Flange Yokes – 1480 Series – Bolt Circle Dia 3.950″ – Bolt Hole Dia 0.480
$97.07
2 in stock
11 People watching this product now!
Description

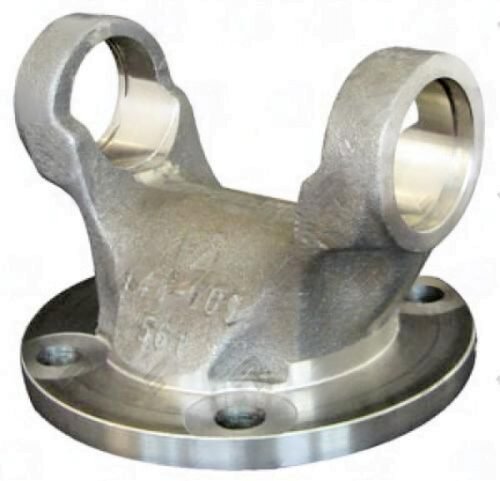

The 4802-1242 Flange Yoke is designed for the 1480 Series U-joints. It features a bolt circle diameter of 3.950 inches and includes 4 bolt holes with a diameter of 0.480 inches. The centerline of the joint to the flat of the flange is 2.559 inches. The male pilot diameter is 3.150 inches, making it suitable for robust driveshaft applications.
Additional information
| Bolt circle dia | 3.950 |
|---|---|
| Bolt hole dia | 0.480 |
| Cj to flat | 2.559 |
| Partn number | 4802-1242 |
| Pilot dia | 3.150 ,M |
| Series | 1480 |
| Bolt Holes | 4 |
