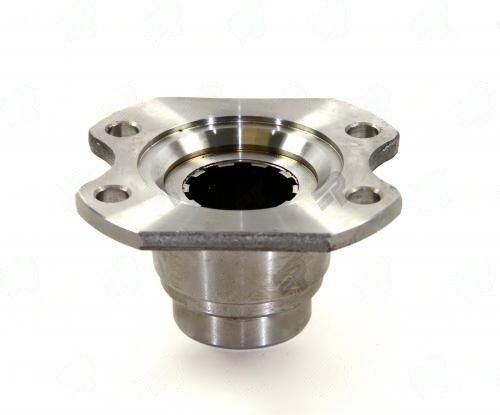

4801-101 – Companion Flanges – 1.750″ Splines Dia – 10 Splines – 4.343″ Bolt Circle Dia
$121.31
1 in stock
Description
4801-101 is a companion flange specifically engineered for Isuzu applications, designed to mate seamlessly with part number 4802-1244. This component plays a crucial role in connecting the driveshaft to the differential or transfer case, ensuring efficient torque transfer and alignment. The flange features a spline count of 10 with a diameter of 1.750 inches, which is essential for maintaining a secure connection under various load conditions.
The critical dimensions of this flange are meticulously chosen to address the mechanical requirements of Isuzu vehicles. The bolt circle diameter measures 4.343 inches, allowing for a robust attachment to the mating component. The pilot diameter of 3.150 inches and hub diameter of 2.148 inches ensure proper centering and alignment, which is vital for minimizing runout and vibration during operation.
- Compatible with part number 4802-1244
- 10 splines with a diameter of 1.750 inches
- 4.343-inch bolt circle diameter for secure mounting
- Pilot diameter of 3.150 inches for proper alignment
- Through hole diameter of 2.728 inches
When installing the 4801-101, ensure that the mating surfaces are clean and torque the bolts in a star pattern to achieve even pressure. Proper installation is key to preventing vibration and ensuring longevity in the driveline system. The design of the 4801-101 flange reflects years of engineering expertise, focusing on durability and performance in demanding applications.
| Bolt circle dia | 4.343 |
|---|---|
| Hub dia | 2.148 |
| Notes | Isuzu / Mates with 4802-1244 |
| Partn number | 4801-101 |
| Pilot dia | 3.150 |
| Remaining stock | <10 |
| Splines count | 10 |
| Splines dia | 1.750" |
| Through hole | 2.728 |
