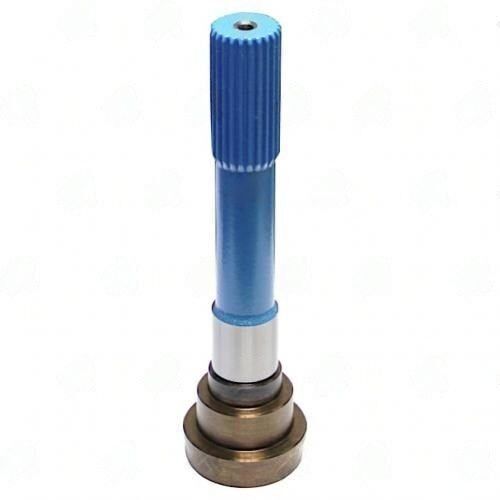

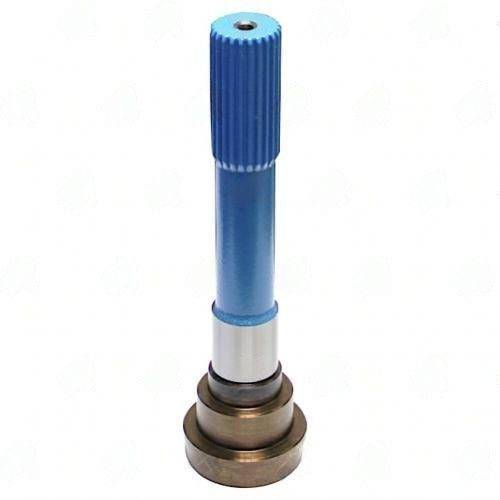

4153-241 – Stub & Midship Shaft – 23/24 X 1.562 Splines – Bearing Dia 1.574″ – Butt Dia 3.344
$61.93
Description
The 4153-241 Stub & Midship Shaft is engineered to deliver precise torque transmission from the transmission to the differential. This component features 23/24 X 1.562 splines, ensuring a secure fit and optimal performance in high-demand applications. The bearing diameter of 1.574″ and butt diameter of 3.344″ contribute to its robust design, allowing it to handle significant torque loads while maintaining structural integrity.
One of the key aspects of the 4153-241 is its tube diameter of 3.500″ and wall thickness of 0.083″. These dimensions are critical for maintaining the shaft’s critical speed limits, which directly affect vibration and overall driveline performance. The slip style design allows for necessary adjustments during installation, ensuring that the shaft aligns perfectly with the transmission output or transfer case.
- Verify spline count and ensure it matches the transmission output.
- Check the runout and balance to prevent vibrations during operation.
- Torque all fasteners to the manufacturer’s specifications for optimal performance.
- Inspect the mating components to ensure compatibility and prevent premature wear.
In summary, the 4153-241 Stub & Midship Shaft is a vital component for any driveline system, designed to meet the demands of both performance builders and fleet technicians. Its specific dimensions and construction make it a reliable choice for efficient torque transmission.
| Bearing dia |
1.574 |
|---|---|
| Butt dia |
3.344 |
| End to weld |
10.625 |
| Partn number |
4153-241 |
| Remaining stock |
>10 |
| Splines count dia |
23/24 X 1.562 |
| Splines length |
3.000 |
| Tube dia |
3.500 |
| Tube wall |
0.083" |
| Style |
Slip |
