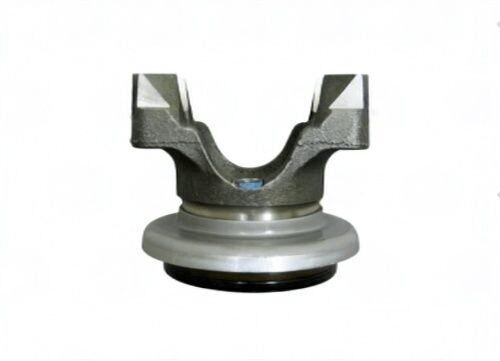

4104-04 – End Yoke – 1410 Series – 1.59″ Splines Dia – 30 Spline
$102.45
0 in stock
14 People watching this product now!
Description
4104-04
This 1410 pinion yoke is designed for the GM 10.5″ and 11.5″ differentials and includes a new pinion seal. It requires strap kit 3570-20 for installation. The yoke features a spline count of 30 with a spline diameter of 1.590 inches. The hub diameter is 2.370 inches, while the thru hole measures 1.630 inches. With a centerline to end distance of 3.750 inches, this yoke is classified as light duty (LD) and is offered by AAM.
Applications:
-
GM 10.5″ Differential:
- 1 Ton GM Pickup: 1973 – 2006 (Rear)
- 1 Ton GM Van: 1973 – 2004 (Rear)
- 3/4 Ton GM Pickup: 1973 – 2006 (Rear)
- 3/4 Ton GM Van: 1973 – 2006 (Rear)
-
GM 11.5″ Differential:
- 1 Ton GM Pickup: 2000 – 2006 (Rear)
- 3/4 Ton GM Pickup: 2000 – 2006 (Rear)
(Note: This item was discontinued on 7/22/24.)
Additional information
| Cj to end | 3.75 |
|---|---|
| Hub dia | 2.37 |
| Notes | GM 10.5 COMES WITH NEW OINION SEAL 14 BOLT GM |
| Partn number | 4104-04 |
| Series | 1410 |
| Splines count | 30 |
| Splines dia | 1.59 |
| Style | BS |
| Through hole | 1.63 |
