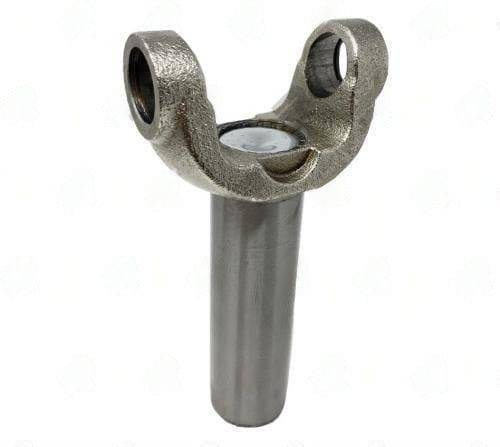

4103-322 Transmission Yoke Chevy 1410 Series 31/32 Splines | 3-3-01646X
$84.46
10 in stock
19 People watching this product now!
Description
The 4103-322 Transmission Slip Yoke is designed for GM transmissions with a 32-spline output shaft, including the 6L50, 6L80E, TH-400 long tail, and 4L80E long tail, as well as transfer cases like the Chevy NP241C, Dodge 242DLD, and NV242DLD. It features a 1410 series design with an outside snap ring style. Specifications include a U-joint cap diameter of 1.188 inches, a U-joint width of 4.188 inches, and a slip yoke length of 8.070 inches. The barrel diameter is 1.886 inches, the spline diameter is 1.378 inches, and it has 32 splines (30 with two blind spots). Made from steel and plated for durability.
3-3-01646X | 3-3-6421X | 40021530
Additional information
| Center u joint to end | 8.070 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.886 |
| Notes | Nickel Plated |
| Partn number | 4103-322 |
| Remaining stock | <10 |
| Series | 1410 |
| Splines count dia | 31/32 X 1.378 |
