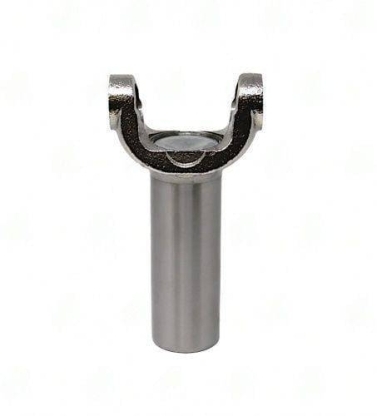

4103-317 – Transmission Yokes – 1410 Series – Splines: 30/31 X 1.615 Splines – 2.201″ Hub Dia
$99.37
Description
The 4103-317 Transmission Yoke is engineered for robust performance in applications like the Dodge RAM 3500, particularly with NV4500 transmissions. This yoke connects seamlessly to 31-spline output shafts, ensuring a reliable fit and function. The 1410 series design provides a balance between strength and weight, making it suitable for heavy-duty use without unnecessary bulk.
Key specifications include:
- 30/31 X 1.615 Splines
- Counter Bore Diameter: 1.655″
- Hub Diameter: 2.201″
- Center U Joint to End: 7.750″
- Nickel Plated for enhanced corrosion resistance
The choice of a 2.201″ hub diameter is critical for ensuring proper engagement with the mating components, while the 30/31 spline configuration allows for optimal torque transfer. The nickel plating not only improves aesthetics but also provides a protective layer against wear and environmental factors.
When installing the 4103-317, ensure that the spline engagement depth is correct and check the phasing with the opposite yoke. This attention to detail prevents premature wear and failure, ensuring a long service life. The 4103-317 is a reliable choice for those looking to maintain or upgrade their driveline components.
| Center u joint to end | 7.750 |
|---|---|
| Counter bore dia | 1.655 |
| Hub dia | 2.201 |
| Notes | Nickel Plated |
| Partn number | 4103-317 |
| Remaining stock | <10 |
| Series | 1410 |
| Splines count dia | 30/31 X 1.615 |
