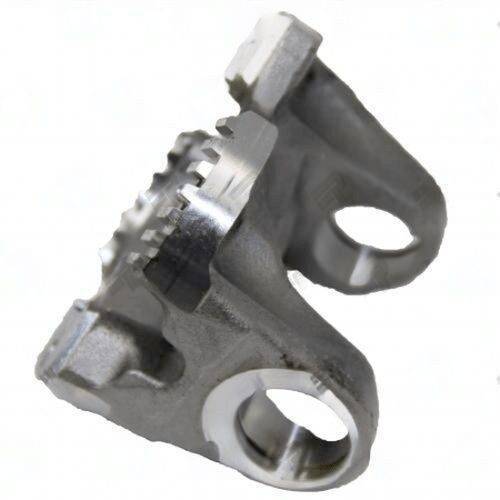

4102-391R Flange Yoke 1410 Serrated – 4.725 Swing Diameter ( Plate OD ) Bolt Circle Diameter: 3.943 Rectangle Pattern: 2.264×3.232
$94.26
50 in stock
Description
The 4102-391R Flange Yoke is engineered to provide reliable connection between driveshafts and various driveline components. This yoke features a 1350 Series design, which is crucial for handling the torque loads typical in high-performance applications. The 3.950″ bolt circle diameter ensures compatibility with a wide range of mounting configurations, while the serrated pilot enhances the fitment precision.
When working with the 4102-391R, it’s essential to consider the installation specifics. The yoke’s dimensions, including the 0.450″ bolt hole diameter and the 2.375″ Cj to flat measurement, are optimized for strength and stability during operation. This yoke is particularly suited for rectangle pattern applications, making it a versatile choice for various setups.
- Check spline engagement depth before installation.
- Ensure proper phasing with the opposite yoke to prevent vibrations.
- Use the correct torque specifications for bolt fasteners.
- Inspect the yoke for wear or damage before installation.
- Verify that the bolt holes align with your companion flange.
With its robust design and precise dimensions, the 4102-391R Flange Yoke is a dependable choice for technicians and builders looking to maintain optimal driveline performance.
| Bolt circle dia | 3.950 |
|---|---|
| Bolt hole dia | 0.450 |
| Cj to flat | 2.375 |
| Partn number | 4102-391R |
| Pilot dia | N/A ,SERRATED |
| Series | 1350 |
| Bolt Holes | 8 |
| Notes | Rectangle Pattern |
