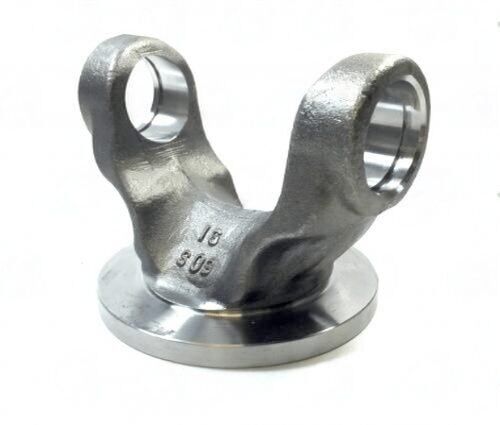

4102-1000 – Flange Yokes – 1410 Series – Bolt Hole Dia 0.000″ – Pilot Dia 2.245, F

The 4102-1000 Flange Yoke is a critical component in your driveline, providing the necessary connection between the driveshaft and the powertrain or axle assembly. With a 1410 Series designation, this yoke is engineered to fit specific U-joint dimensions, ensuring optimal torque transfer and performance. The 2.245 inch pilot diameter allows for a precise fit into the mating components, which is crucial for maintaining alignment and reducing wear over time.

One of the standout features of the 4102-1000 is its 0.000 inch bolt hole diameter, indicating that this yoke is designed for applications where bolt holes are not utilized, making it ideal for specific setups that require a clean interface without additional hardware. The 2.520 inch Cj to flat measurement ensures that the yoke properly engages with the companion flange, allowing for effective power transfer.

• Check the spline engagement depth before installation.
• Ensure proper phasing with the opposite yoke to prevent vibration.
• Verify compatibility with 1410 Series U-joints for seamless integration.
• Inspect the mating surfaces for wear or damage prior to installation.
• Do not force spline entry; ensure alignment for smooth installation.

For those working on 1410 applications, the 4102-1000 Flange Yoke is an essential part of your driveline assembly. Its precise dimensions and robust design make it a reliable choice for both performance builds and standard replacements. Remember, proper installation and verification of all dimensions are key to ensuring the longevity and performance of your driveline system.
