4-82-371U

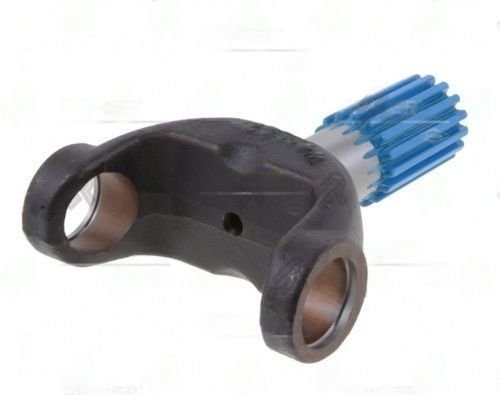

The 4-82-371 Drive Shaft Yoke Shaft from the 1550 series is engineered for high performance and durability in industrial applications. It features an outside yoke dimension of 5.25 inches and a major spline diameter of 1.750 inches with 16 splines, ensuring a secure and precise fit. The bearing cap diameter is 1.375 inches, providing robust support. The centerline to the end of the spline measures 6.812 inches, while the end/spline-to-point radius is 4.250 inches, allowing for effective operation. With a spline length of 2.500 inches, this yoke shaft delivers strong engagement for heavy-duty tasks. The spline hole minor diameter is 1.484 inches, and the spline width is 0.172 inches, enhancing its overall strength and stability. Designed in an SR style with a 45.0° angle, this yoke shaft complies with industry standards and is categorized under VMRS code 024002061, making it an excellent choice for demanding power transmission systems.
