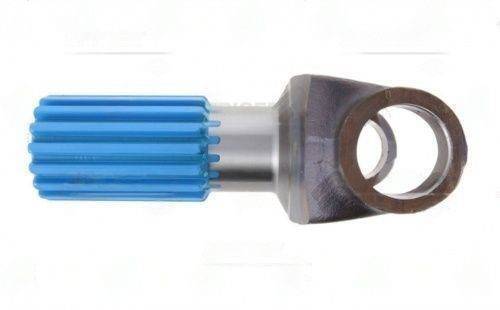

4-82-211 is a Yoke Shaft from the 1550 Series, engineered for optimal performance in demanding driveline applications. This yoke connects the driveshaft to the transmission or differential, ensuring a secure fit and efficient torque transfer. With a spline diameter of 2.000 inches and 16 splines, it provides a robust interface that handles significant loads while maintaining alignment.
The critical dimensions of this yoke shaft are designed to meet specific mechanical requirements. The 3.000-inch spline length allows for adequate engagement, while the centerline to end measurement of 6.120 inches supports proper positioning in the assembly. This configuration ensures that the yoke can accommodate axial movement, which is essential during suspension travel.
- Check spline engagement depth before installation.
- Ensure proper phasing with the opposite yoke to avoid vibrations.
- Never force spline entry; align carefully to prevent damage.
When replacing a yoke shaft, always verify the spline count and diameter to ensure compatibility. The 1550 Series is particularly suited for applications that require a balance between strength and weight, making the 4-82-211 a reliable choice for fleet maintenance and performance builds alike. With its robust design, this yoke shaft is built to withstand the rigors of industrial use, delivering consistent performance over time.
