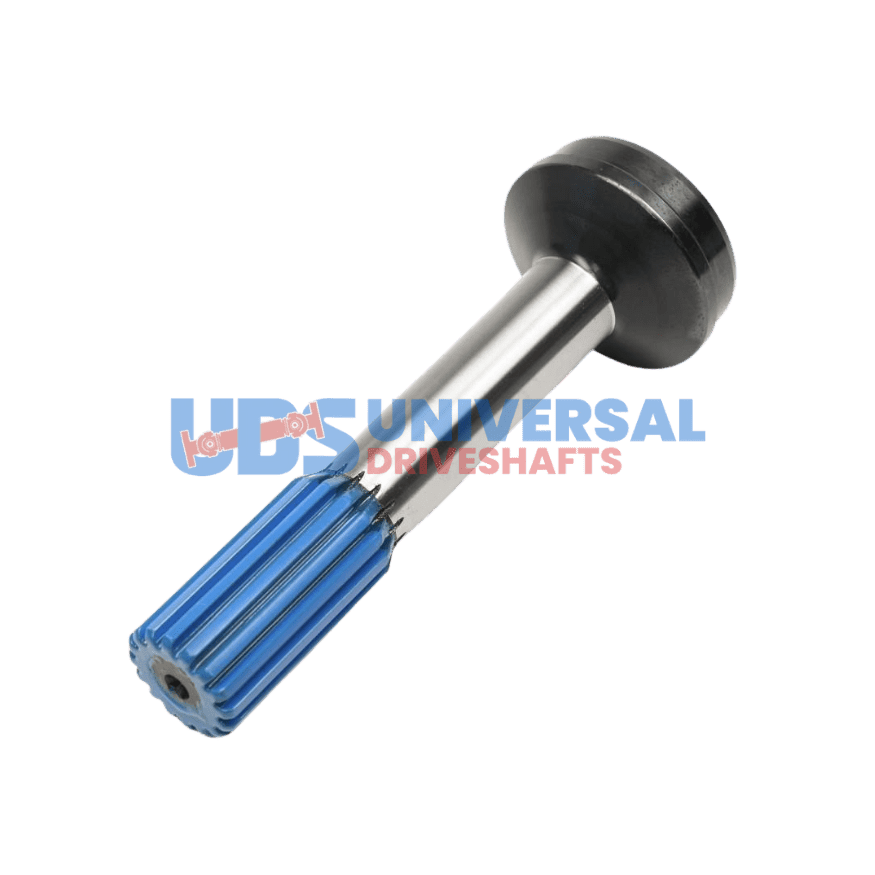

Spline Stub 1.750×16 Spline, 3.500 X .095 Tube – 4-53-61 – UDS

Spline Stub & Midship Shaft is crucial for transmitting torque effectively from the transmission to the differential. This specific configuration features 1.750″ splines diameter and 16 splines, making it distinct in its ability to handle significant torque loads. The 3.500″ tube diameter and 0.095″ wall thickness contribute to its strength while maintaining a manageable weight.

When installing this shaft, it’s essential to ensure that the spline count and diameter match your application precisely. Using a shaft with the wrong spline count can lead to catastrophic failure, as the U-joint will not seat correctly, resulting in misalignment and vibration. Additionally, the 5.938″ spline length is designed to fit snugly into the mating components, ensuring a solid connection.

• Verify the spline diameter: 1.750″ is critical for compatibility.
• Check the tube diameter: 3.500″ ensures proper fitment.
• Ensure the wall thickness of 0.095″ for durability under load.
• Confirm the end-to-weld measurement of 8.562″ for correct installation.
• Balance the assembly if vibration occurs post-installation.

In summary, this Spline Stub & Midship Shaft is engineered for performance and reliability. Its specific dimensions and spline configuration make it an essential component for any driveline setup, ensuring that torque is transmitted efficiently and effectively.
