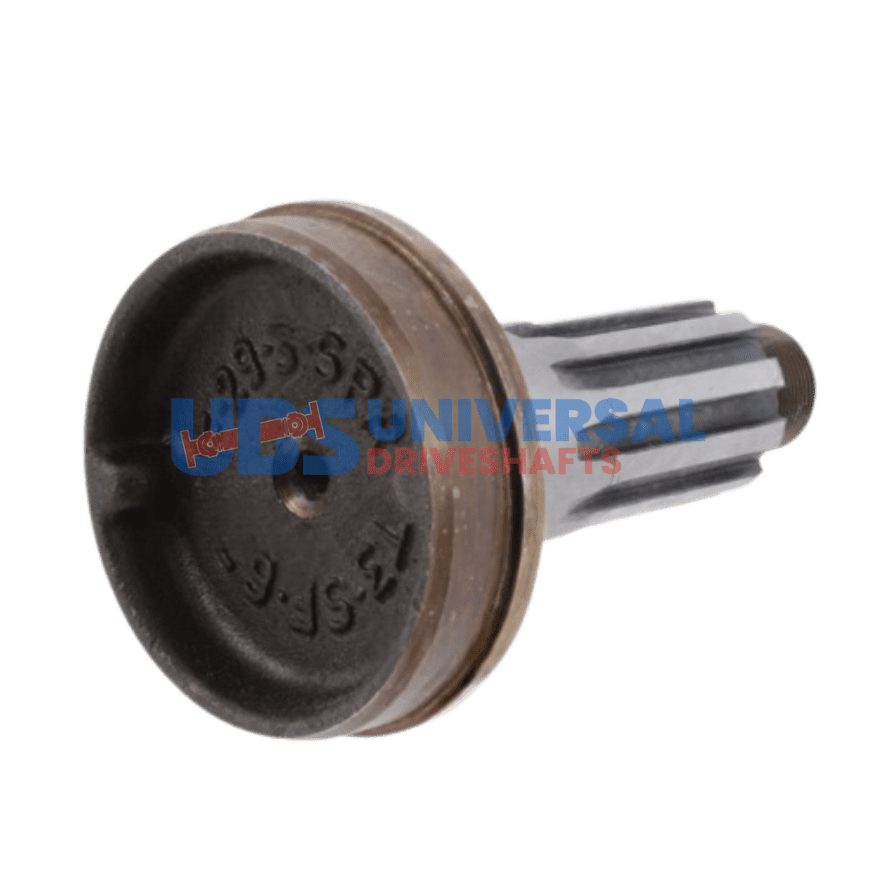

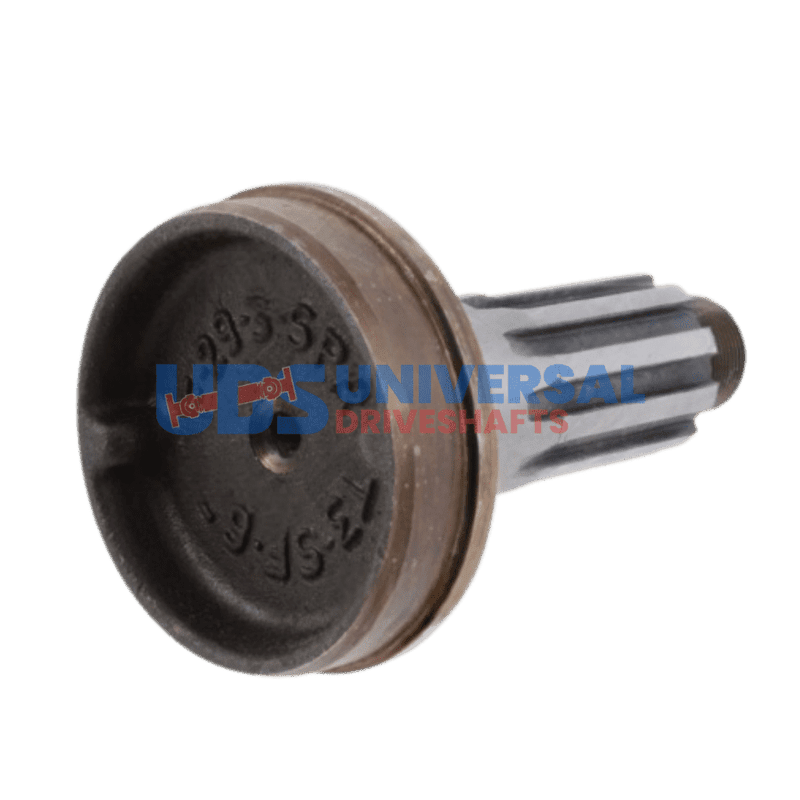

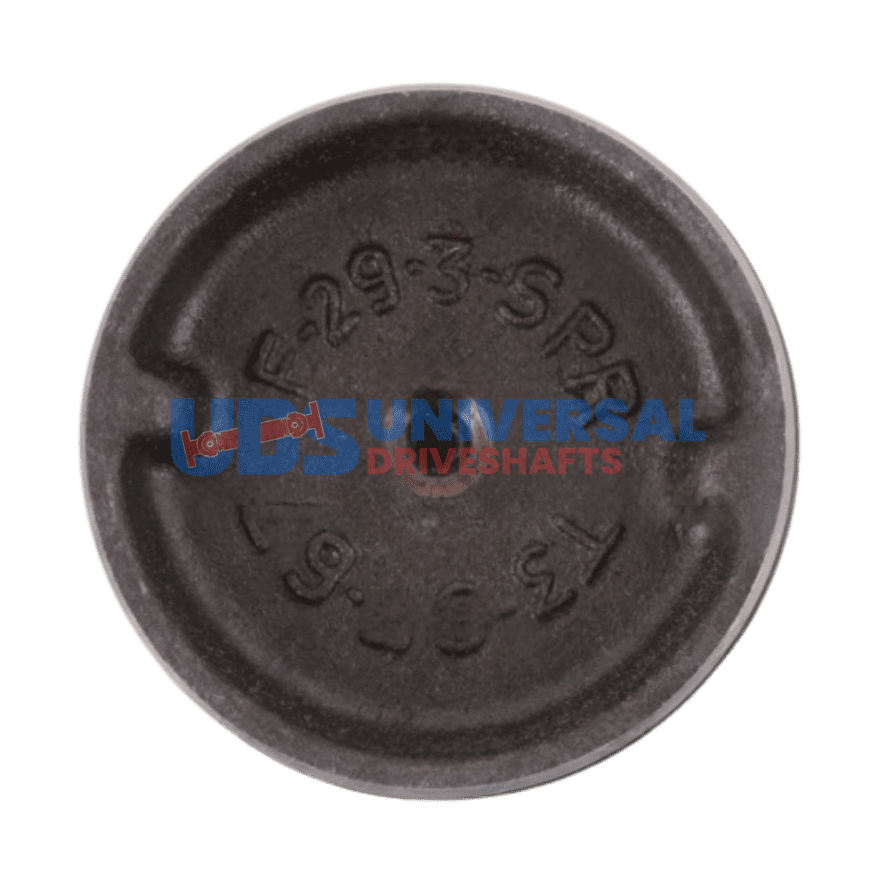

Splined Midship Tube Shaft Splines: 1.500 x 10 , Fits: 3.500 X .095 Tube 4-53-361
$54.53
20 in stock
Description
Splined Stub & Midship Shafts are crucial for effective torque transmission from your vehicle’s transmission to the differential. A common issue arises when a customer experiences vibrations or noise during acceleration. This often indicates a misalignment or failure in the driveshaft assembly, which can lead to catastrophic failures if not addressed promptly. The solution? A reliable replacement like this Splined Stub & Midship Shaft.
With specifications such as a tube diameter of 3.500″ and a wall thickness of 0.095″, this shaft is engineered to handle the demands of high-torque applications. The 10 X 1.500 splines ensure a secure fit with the mating components, while the 2.000″ spline length provides the necessary engagement for optimal performance. Additionally, the butt diameter of 3.312″ and bearing diameter of 1.574″ are designed to match common configurations found in various vehicles.
When installing this shaft, keep the following in mind:
- Ensure the spline count and diameter match your transmission output.
- Check the runout before installation to avoid vibrations.
- Torque all bolts to the manufacturer’s specifications for a secure fit.
- Balance the assembly if any vibration is detected post-installation.
By using this Splined Stub & Midship Shaft, you can restore the integrity of your driveline and prevent further issues down the line.
| Tube dia |
3.500 |
|---|---|
| Tube wall |
0.095" |
| Butt dia |
3.312 |
| Splines length |
2.000 |
| End to weld |
4.031 |
| Bearing dia |
1.574 |
| Brand |
UDS |
| Splines count dia |
10 X 1.500 |
| Style |
FIXED |
