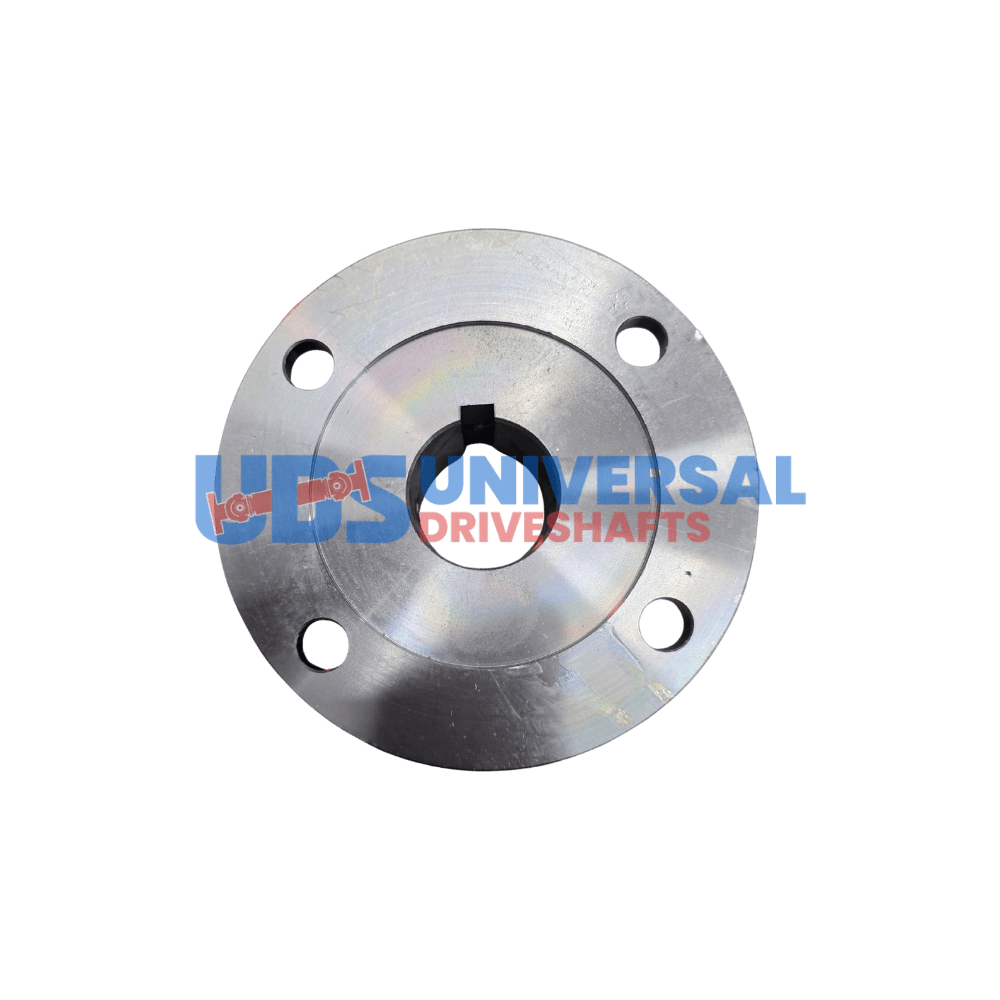

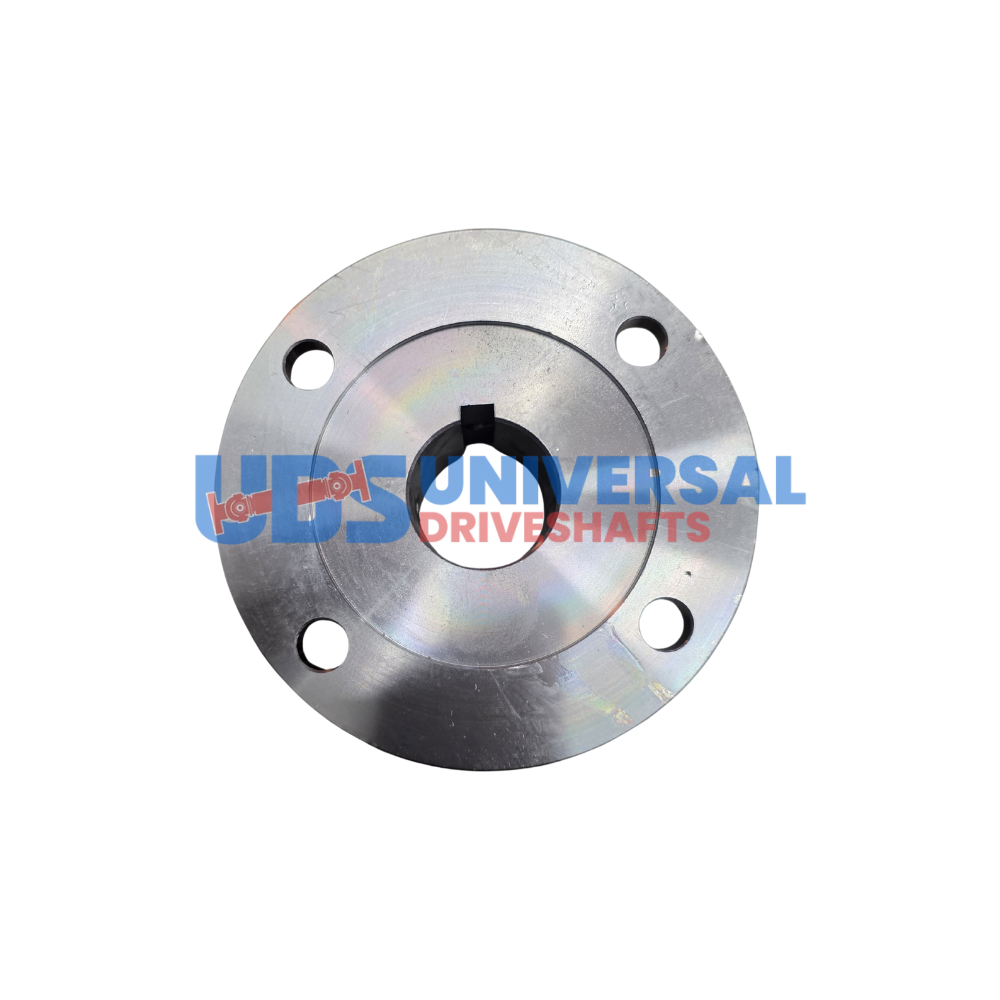

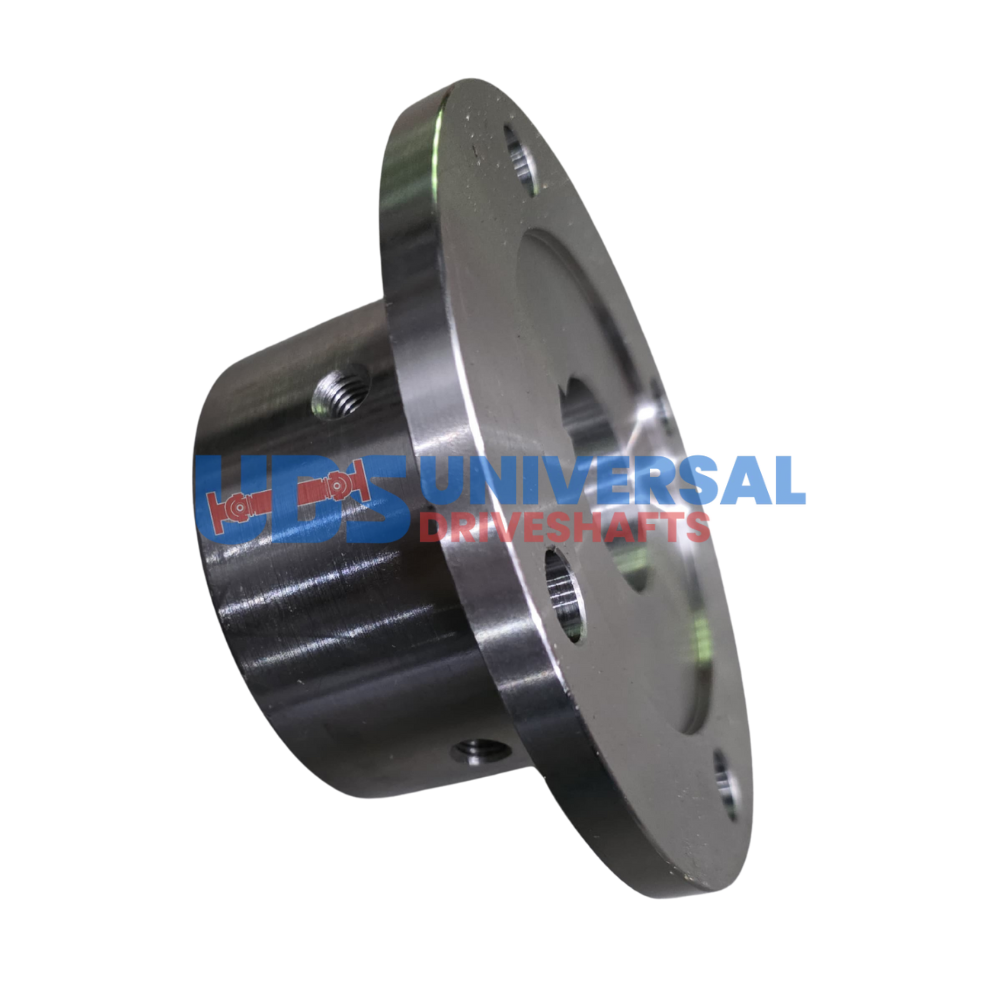

4-1-1133-2 Companion Flange Yoke Bore: 1.625 – Keyway: 0.375 – Pilot: 3.750 F
$81.25
3 in stock
12 People watching this product now!
Description
Companion Flange – Bore: 1.625″ – Keyway: .375″ – Pilot: 3.750″F – 4 Hole
Hole config: 3.053″ x 3.639″
D: 1.625
A: 5.880
B: 4.750
C: 3.750F
E: 3.750
F: 2.500
K:0.375
Holes: 4 Holes – Holes Diameter: 0.514
Additional information
| Bolt circle dia | 4.750 |
|---|---|
| Hub dia | 3.750 |
| Notes | Hole config: 3.053" x 3.639" |
| Partn number | 4-1-1133-2 |
| Pilot dia | 3.750F |
| Remaining stock | <10 |
| Through hole | 2.500" |
| Keyway | 0.375 |
| Bolt Holes | 4 |
| Outside dia | 5.880 |
