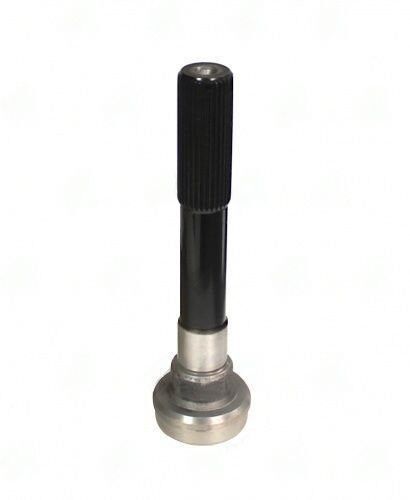

3R53-321 – Stub & Midship Shaft – 31/32 X 1.375 Splines – Bearing Dia 1.378″ – Butt Dia 2.625
$152.30
Description
3R53-321 is a Stub & Midship Shaft that plays a crucial role in transmitting torque from the transmission to the differential. If you’re experiencing vibrations or noise during acceleration, it may indicate wear or failure in your current shaft. A worn shaft can lead to misalignment, causing excessive stress on U-joints and other driveline components.
This specific Stub & Midship Shaft features 31/32 X 1.375 Splines and a Bearing Diameter of 1.378″, ensuring a precise fit for your application. The Butt Diameter of 2.625″ and Tube Diameter Wall of 2.750X0.065 provide the necessary strength and rigidity to handle high torque loads. Additionally, the Splines Length of 3.500″ and End to Weld measurement of 9.615″ are critical for maintaining correct phasing and alignment.
When diagnosing driveline issues, consider the following:
- Check for vibrations that may indicate a failing shaft.
- Inspect U-joints for wear, as they can be affected by a compromised midship shaft.
- Verify that the length and spline count match your application to prevent further issues.
Replacing a worn or damaged Stub & Midship Shaft with the 3R53-321 restores proper function and reliability to your driveline system. Don’t overlook the importance of this component in maintaining the overall health of your vehicle’s drivetrain.
| Bearing dia |
1.378 |
|---|---|
| Butt dia |
2.625 |
| End to weld |
9.615 |
| Partn number |
3R53-321 |
| Remaining stock |
<10 |
| Splines count dia |
31/32 X 1.375 |
| Splines length |
3.500 |
| Tube dia |
2.750" |
| Tube wall |
0.065" |
| Style |
Slip |
