3R04-271 – End Yoke – 1.170″ Splines Dia – 1.942″ Hub Dia – 27 Spline
$125.66
1 in stock
Description

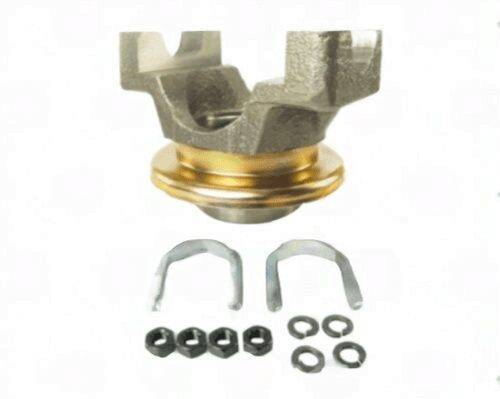

3R04-271 is an End Yoke that plays a crucial role in connecting the driveshaft to the transmission, transfer case, or differential. This specific yoke is engineered for GM 8.2 applications, including BUICK, OLDSMOBILE, and PONTIAC models. With 27 splines and a spline diameter of 1.170″, it ensures a secure fit and reliable torque transfer.
One of the standout features of the 3R04-271 is its hub diameter of 1.942″. This dimension is critical because it directly affects the compatibility with the mating components. Using a yoke with a different hub diameter can lead to misalignment and potential failure. Furthermore, the 3R series designation indicates specific dimensions and characteristics that differentiate it from other series, such as the 1310 or 1350 series, which have different spline counts and diameters.
When installing the 3R04-271, it’s essential to check the spline engagement depth and ensure proper phasing with the opposite yoke. Here are some key specifications to keep in mind:
- Hub Diameter: 1.942″
- Spline Diameter: 1.170″
- Spline Count: 27
- Cj to End: 2.866″
- Through Hole: 1.287″
In summary, the 3R04-271 End Yoke is designed for optimal performance in GM 8.2 applications. Ensure you verify the specifications before installation to avoid any compatibility issues. Remember, mismatched components can lead to significant driveline problems.
| Cj to end |
2.866 |
|---|---|
| Hub dia |
1.942 |
| Notes |
GM 8.2 : BUICK, OLDSMOBILE & PONTIAC |
| Partn number |
3R04-271 |
| Series |
3R |
| Splines count |
27 |
| Splines dia |
1.170" |
| Style |
UB |
| Through hole |
1.287 |
