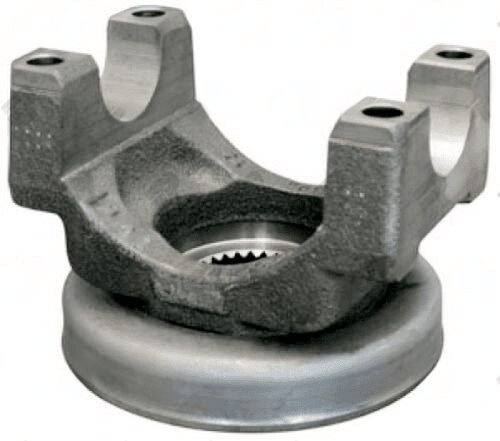

3R04-03 – End Yoke – 3R Series – 1.312″ Splines Dia – 2.110″ Hub Dia
$146.47
1 in stock
Description
3R04-03 is an End Yoke specifically designed for GM 8.6 applications, providing a reliable connection between the driveshaft and the powertrain. With a spline diameter of 1.312″ and 30 splines, this yoke ensures a snug fit and optimal torque transfer. The hub diameter measures 2.110″, making it compatible with various driveline configurations.
When installing the 3R04-03, it’s crucial to verify the spline engagement depth and ensure proper phasing with the opposite yoke. Mismatched spline counts or series can lead to assembly issues, so always double-check these specifications before proceeding. The yoke features a Cj to end measurement of 3.375″, which is important for maintaining the correct driveshaft length in your application.
- Hub Diameter: 2.110″
- Spline Diameter: 1.312″
- Splines Count: 30
- Through Hole: 1.150″
- Style: BS
In GM 8.6 applications, the 3R04-03 yoke plays a vital role in ensuring smooth power delivery and handling the stresses of driving conditions. This component is engineered to withstand the rigors of daily use while maintaining performance integrity. Remember, proper installation and maintenance are key to extending the life of your driveline components.
| Cj to end |
3.375" |
|---|---|
| Hub dia |
2.110" |
| Notes |
GM 8.6 ,STRAP PART NUMBER: 2-70-48X |
| Partn number |
3R04-03 |
| Series |
3R |
| Splines count |
30 |
| Splines dia |
1.312 |
| Style |
BS |
| Through hole |
1.150" |
