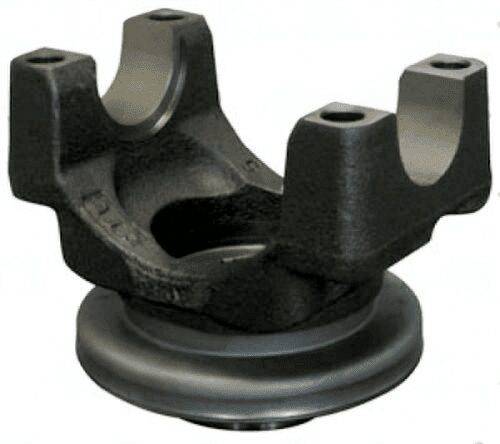

3R04-02 – End Yoke – 3R Series – 1.312″ splines dia – 1.940″ Hub Dia”,
$103.50
1 in stock
16 People watching this product now!
Description
This 3R04-02 End Yoke features 30 splines with a 1.312″ diameter, designed for GM 8.5″ and 9.25″ differentials.
Full Description
The 3R04-02 End Yoke is engineered for reliable connection to GM 8.5" and 9.25" differentials. With a spline diameter of 1.312 inches, this yoke ensures a secure fit that can handle the torque demands of your driveline. The 30 splines provide a robust engagement, which is crucial for maintaining alignment and preventing premature wear.
Measuring 1.940 inches in hub diameter, the 3R04-02 allows for easy installation and compatibility with existing components. The through hole of 1.150 inches simplifies the mounting process, ensuring that you can get your vehicle back on the road quickly. The centerline to end measurement of 3.375 inches is critical for proper phasing with the opposite yoke, which is vital for minimizing vibrations and maximizing performance.
This yoke is designed to work seamlessly with the Dana strap kit 2-70-48X, making it a practical choice for anyone looking to replace or upgrade their driveline components. When installing the 3R04-02, remember to check spline engagement depth and ensure proper phasing to avoid issues down the line.
- 30 splines for secure engagement
- 1.312" spline diameter for precise fit
- Compatible with GM 8.5" and 9.25" differentials
- Utilizes Dana strap kit 2-70-48X
- Check spline depth and phasing during installation
In summary, the 3R04-02 End Yoke is a dependable choice for high-performance applications, ensuring that your driveline operates smoothly and efficiently.
Additional information
| Cj to end | 3.375 |
|---|---|
| Hub dia | 1.940" |
| Notes | GM 8.5 & 9.25 ,STRAP PART NUMBER: 2-70-48X |
| Partn number | 3R04-02 |
| Series | 3R |
| Splines count | 30 |
| Splines dia | 1.312 |
| Style | BS |
| Through hole | 1.150" |
