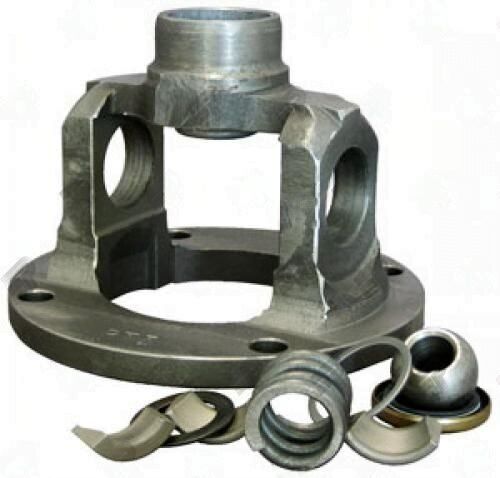

3R02-361CV – Cv Flange Yokes – 3R Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 4.44

The 3R02-361CV Cv Flange Yoke is specifically engineered for Saginaw CV flange applications, making it an essential component for Hummer H3 conversions. This yoke connects the driveshaft to the transmission or transfer case, ensuring reliable torque transfer and smooth operation. With a ball stud diameter of 0.5″ and a bolt circle diameter of 4.44″, this yoke is designed to meet the demands of high-performance driveline systems.

One of the key features of the 3R02-361CV is its robust construction, which includes a pilot diameter of 3.622″ and a C L to face measurement of 1.687″. These dimensions are critical for proper alignment and engagement with the mating components. The yoke’s design allows for effective axial movement, accommodating suspension travel without compromising performance.

When installing the 3R02-361CV, consider the following:

• Ensure proper spline engagement depth for optimal torque transfer.
• Verify phasing with the opposite yoke to prevent vibrations.
• Check bolt hole diameter (422″) for compatibility with your mounting hardware.
• Use appropriate torque specifications to secure connections.
• Inspect the yoke and mating components regularly for wear and damage.

In summary, the 3R02-361CV Cv Flange Yoke is designed to deliver reliable performance in demanding applications. Its specific dimensions and construction make it a perfect fit for Saginaw CV flange setups, particularly in Hummer H3 conversions. Trust this yoke to handle the torque loads and dynamic conditions of your driveline system.
