3R02-311CV – Cv Flange Yokes – 3R Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 4.25
$71.72
33 in stock
Description

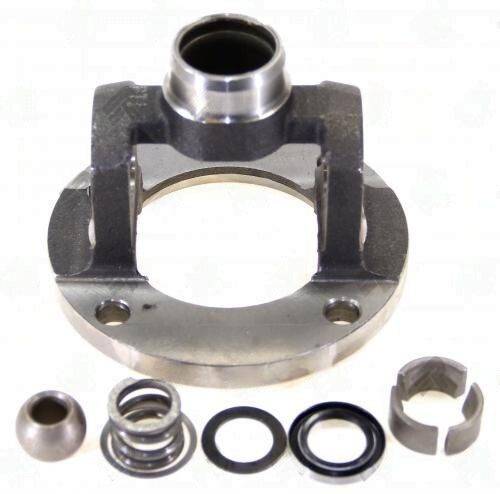

3R02-311CV Cv Flange Yokes are essential for connecting your driveshaft to the transmission or differential in Saginaw CV flange applications. If you’re experiencing vibrations or misalignment, this yoke is a critical replacement part. It replaces the 3R02-20 and includes a CV kit with a ball, ensuring you have everything needed for a proper installation.
When diagnosing driveline issues, look for symptoms like excessive play or noise during acceleration. These can indicate a worn or damaged yoke. The 3R02-311CV features a ball stud diameter of 0.5″, a bolt circle diameter of 4.25″, and a pilot diameter of 3.125″. These specifications are crucial for ensuring a snug fit and proper alignment with your existing components.
- Ball Stud Diameter: 0.5″
- Bolt Circle Diameter: 4.25″
- Pilot Diameter: 3.125″
- Includes CV kit with ball for easy installation
- Replaces 3R02-20, ensuring compatibility
Always verify the spline engagement depth and check for proper phasing with the opposite yoke during installation. The 3R02-311CV is designed to restore the correct function of your driveline, eliminating vibrations and ensuring smooth operation.
| Ball stud dia | 0.5 |
|---|---|
| Bolt circle dia | 4.25 |
| Bolt hole dia | 455 |
| Brand | UDS |
| C l to face | 1.687 |
| Class | LD |
| Notes | Saginaw CV flange, Replaces 3R02-20, Includes CV kit with ball |
| Partn number | 3R02-311CV |
| Pilot dia | 3.125 |
| Pilot type | F |
| Series | 3R |
