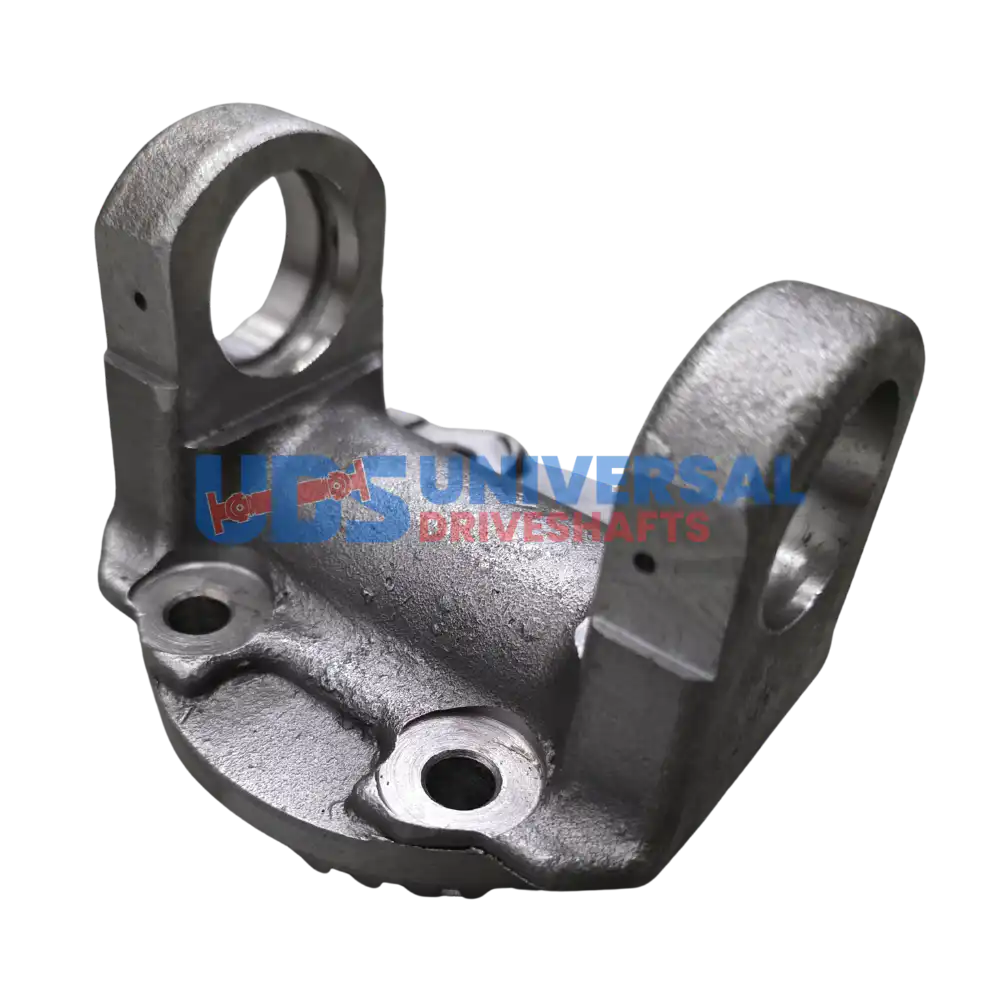

When installing the 3R02-291 Flange Yoke, it’s crucial to ensure proper alignment and engagement. This yoke connects your driveshaft to the transmission or differential, and it features a 2.913″ bolt circle diameter, making it compatible with various setups. Before you slide this yoke onto the shaft, double-check the spline count and ensure it matches the output. A common mistake is mismatching the spline size, which can lead to installation issues.

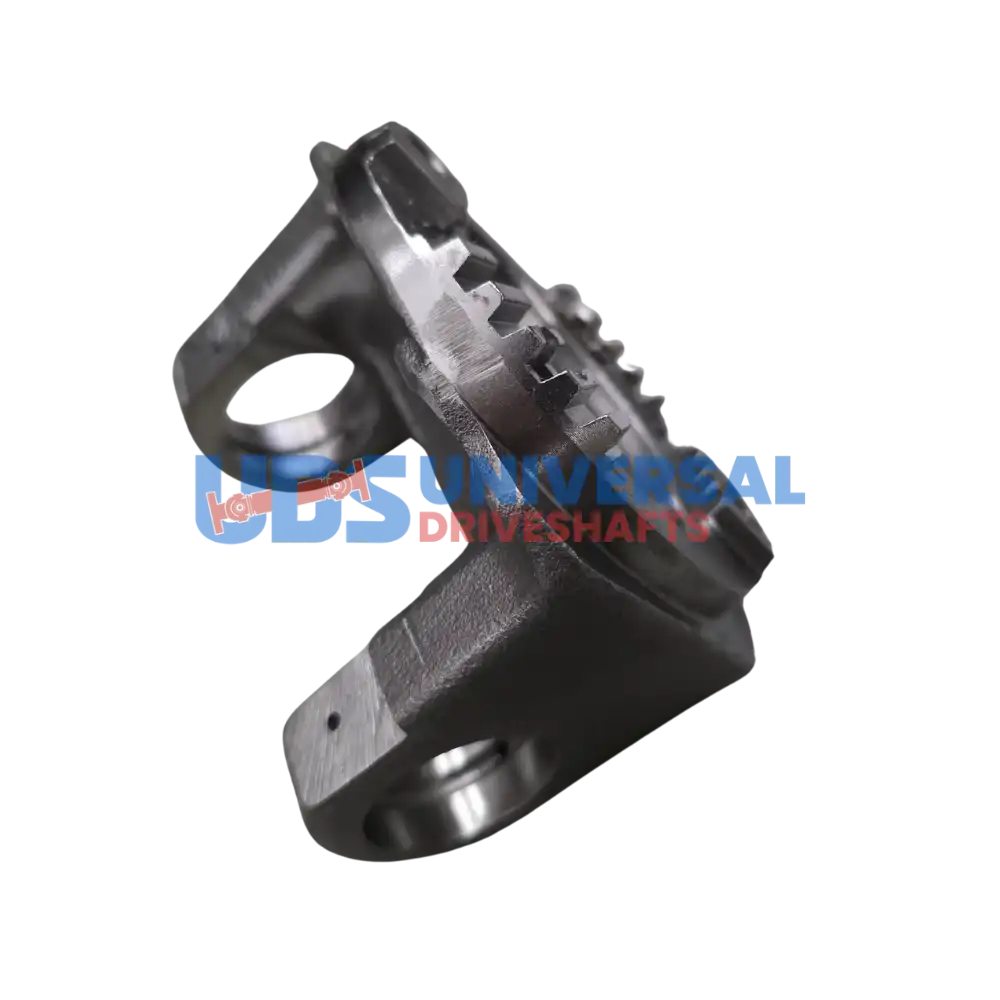

The 3R Series yoke is designed with a serrated pilot type, allowing for a secure fit. Pay attention to the bolt hole diameter of 0.334″ and the four bolt holes provided for mounting. Make sure your fasteners are torqued to the manufacturer’s specifications to avoid any loosening during operation. The Cj to flat measurement of 2.000″ is also important for ensuring the correct positioning of the yoke.
- Verify spline engagement depth before installation.
- Check phasing with the opposite yoke to prevent vibrations.
- Ensure the bolt circle diameter matches your application.
- Inspect the pilot area for any wear or damage.
With the right checks in place, the 3R02-291 will deliver reliable performance in your driveline setup. Remember, proper installation is key to avoiding premature wear and ensuring smooth operation.
