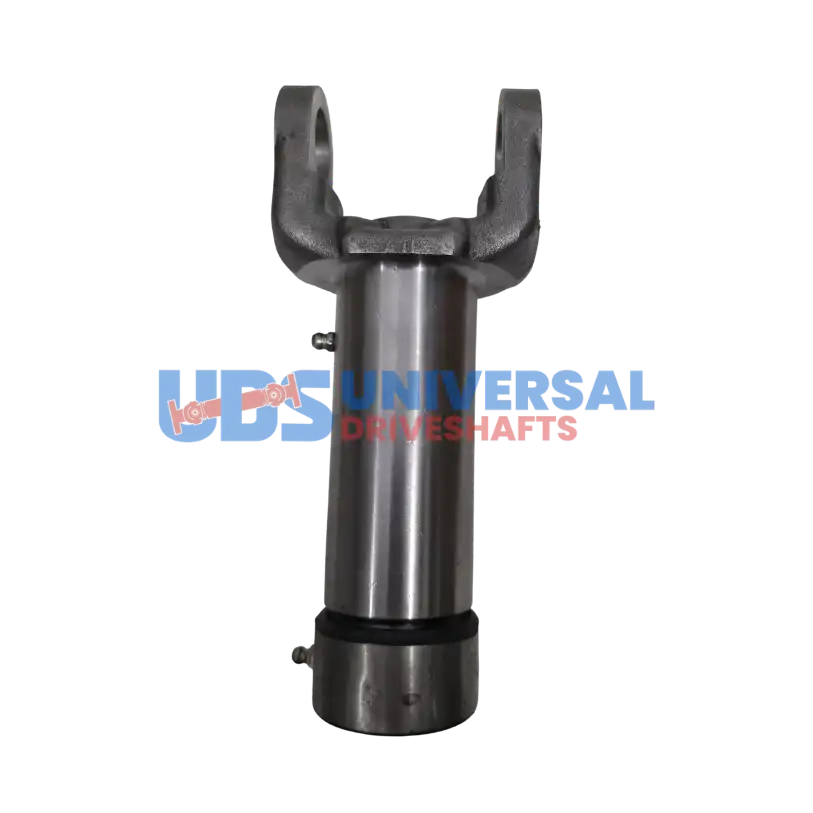

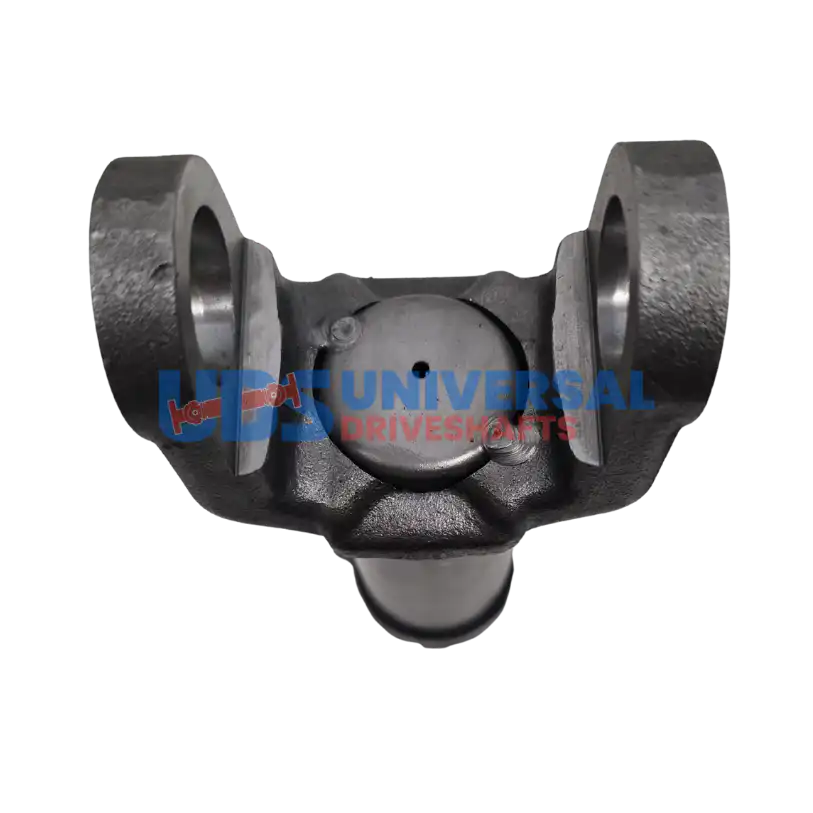

3R-3-9170KX Slip Yoke 3R series, Splines: 1.375×16 Center Joint To End 7.375

The 3R-3-9170KX Slip Yoke is an essential component for your drivetrain, particularly suited for UDS applications. Before installation, ensure you verify the spline count and diameter—this yoke features a robust 1.375″ spline diameter and 16 splines. The centerline to end measurement is 7.375″, which is critical for proper fitment and alignment.

When preparing to install the 3R-3-9170KX, check the spline engagement depth to ensure a secure fit. A common mistake is attempting to force the spline into the yoke; this can lead to damage. Instead, align the yoke carefully and slide it onto the output shaft. Always verify phasing with the opposite yoke to maintain balance and prevent vibrations.

• Check spline count: 16 splines
• Verify spline diameter: 1.375″
• Measure centerline to end: 7.375″
• Ensure proper phasing with opposite yoke
• Inspect mating components for wear

Using the 3R-3-9170KX Slip Yoke will enhance the performance and reliability of your driveline. Remember, proper installation and inspection are key to preventing premature wear and ensuring a smooth operation. With its robust design, this yoke is built to handle the demands of your application.
